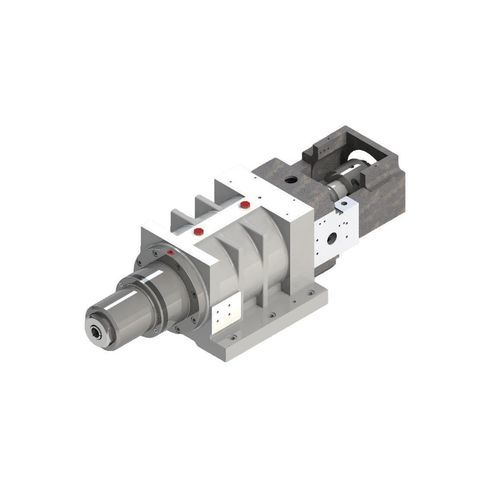

Turning spindle DGZC-10010/2.2B-WVS

AC motorgrease lubricated

Description
The DGZC-10010 is a torque-focused Swiss-type lathe spindle with a permanent-magnet synchronous motor providing 2.2 kW continuous power, 7.1 Nm rated torque (S1) and up to 17.9 Nm peak torque. The φ27 mm through-hole enables bar-fed turning configurations and integration into horizontal lathe layouts.

Key figures

• Maximum speed: 10,000 rpm
• Rated power (S1): 2.2 kW
• Rated torque (S1): 7.1 Nm
• Maximum torque: 17.9 Nm
• Through-hole diameter: φ27 mm

Technical specifications

• Model: DGZC-10010/2.2B-WVS
• Motor type: Three-phase AC permanent-magnet synchronous motor
• Max. speed (rpm): 10000
• Max. current (A): 18.9
• Max. torque (Nm): 17.9
• Rated voltage (V): 380
• Rated power (S1:100%) (kW): 2.2
• Rated torque (S1:100%) (Nm): 7.1
• Balance grade: G0.4
• Lubricating mode: Grease
• Nose form: Model 20
• Runout at 50 mm (standard rod): ≤0.003 mm
• Spindle bearing configuration: 7011x3 + 7010x2
• Through-hole diameter (mm): φ27
• Encoder: Chord encoder / SYNtec Encoder
• Weight (kg): 121
• Installation method: Horizontal installation

Compatibility & applications

• Designed for bar-fed Swiss-type turning operations
• Compatible with Siemens, FANUC, Huazhong CNC, GSK, LNC, SYNTEC and other CNC systems
• Encoder options facilitate integration with machine controls
• Horizontal installation for standard lathe integration and retrofits
