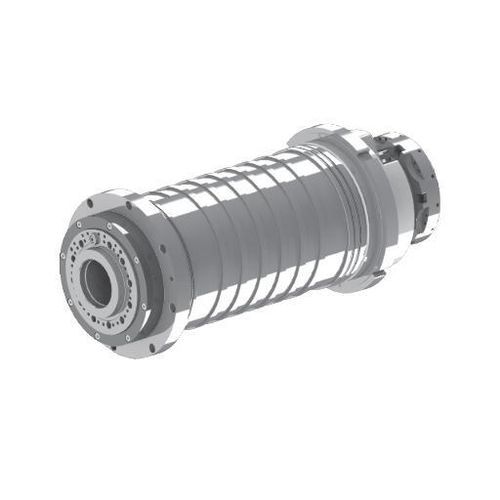

Turning spindle DGZYC-28003/30-FWVCS

AC motorgrease lubricated

Overview
The DGZYC-28003 is the largest, highest-torque spindle in its series. A 280 mm spindle body, A2-8 nose and an 86 mm through-hole are combined with 30 kW continuous power and 715 Nm peak torque to support large chucking systems and heavy CNC turning operations. Designed for horizontal installation and compatibility with common CNC controls.

Quick specifications
Diameter: Φ280 mm
Maximum speed: 3000 rpm
Power (S1): 30 kW
Rated torque (S1): 286 Nm
Peak torque: 715 Nm
Through-hole diameter: φ86 mm
Weight: 265 kg

Technical data
Model: DGZYC-28003/30-FWVCS
Motor type: Three-phase AC permanent magnet synchronous motor
Max. speed (rpm): 3000
Max. current (A): 150
Max. torque (Nm): 715
Rated voltage (V): 380
Rated power (S1/100%) (kW): 30
Rated torque (S1/100%) (Nm): 286
Balance grade: G0.4
Lubricating mode: Grease
Nose form: A2-8
Conical runout (mm): ≤0.003
Front end face runout (mm): ≤0.003
Runout at 300 mm of standard rod: ≤0.01
Spindle model (bearings): NN3026+N1022+130B
Encoder: Chord encoder / SYNTEC Encoder
Installation method: Horizontal installation
Adaptive CNC systems: Siemens, FANUC, Huazhong CNC, GSK CNC, LNC, SYNTEC, etc.

Features

• 280 mm spindle body for large-diameter workpieces
• A2-8 nose compatible with large chucking systems
• 86 mm through-hole for extended workpiece clearance
• 30 kW continuous power with 715 Nm peak torque for heavy cutting
• Permanent magnet synchronous motor (PMSM) for high torque density
• Grease lubrication and balance grade G0.4 for stable operation
• Low runout: conical ≤0.003 mm, front face ≤0.003 mm, runout at 300 mm ≤0.01 mm
• Encoder options and compatibility with major CNC controls

Applications
Applicable to heavy CNC turning requiring high torque and large-chuck setups: large-diameter shafts, housings, flanges and other heavy turning workpieces under severe cutting conditions.

Technical specifications

• Model: DGZYC-28003/30-FWVCS
• Diameter: Φ280 mm
• Maximum speed: 3000 rpm
• Motor type: Three-phase AC permanent magnet synchronous motor
• Max. current: 150 A
• Max. torque: 715 Nm (peak)
• Rated power (S1): 30 kW
• Rated torque (S1): 286 Nm
• Rated voltage: 380 V
• Through-hole diameter: φ86 mm
• Nose form: A2-8
• Spindle model (bearings): NN3026+N1022+130B
• Encoder options: Chord encoder / SYNTEC Encoder
• Balance grade: G0.4
• Lubrication: Grease
• Conical runout: ≤0.003 mm
• Front end face runout: ≤0.003 mm
• Runout at 300 mm: ≤0.01 mm
• Weight: 265 kg
• Installation: Horizontal
• Compatible CNC systems: Siemens, FANUC, Huazhong CNC, GSK CNC, LNC, SYNTEC, etc.
