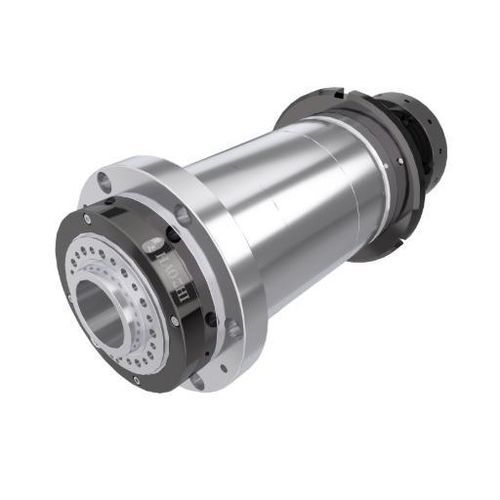

Turning spindle DGZC-17006K6-FC

belt-drivengrease lubricated

Introduction
The K6 version adapts the 170 mm spindle platform to V-belt-driven horizontal CNC lathes. It maintains a φ56 mm through-hole and the 6000 rpm series speed limit while offering a slightly reduced unit weight compared with the synchronous-belt K7 configuration.

Key data
Diameter: Φ170 mm
Through-hole: φ56 mm
Maximum speed: 6000 rpm

Technical data (summary)
Model: DGZC-17006K6-FC
Highest speed (rpm): 6000
Balance grade: G0.4
Lubrication: Grease
Nose form: A2-5
Taper hole taper: 1:19.18
Conical runout (mm): ≤0.003
Front end face runout (mm): ≤0.003
Runout at 300 mm of standard rod: ≤0.01
Spindle bearings / model: 4x7016
Through-hole diameter (mm): φ56
Drive pulley: V-belt
Coding pulley: XL
Weight (kg): 81.7
Installation: Horizontal

Dimensions (nominal)
A: φ170
B: φ220
C: φ82
D: φ100
L: 493
L1: 260
L2: 12

Characteristics / technical specifications

• Model: DGZC-17006K6-FC
• External diameter: Φ170 mm
• Through-hole: φ56 mm
• Maximum speed: 6000 rpm
• Balance grade: G0.4
• Lubrication: Grease
• Nose form: A2-5
• Taper ratio: 1:19.18
• Conical runout: ≤0.003 mm
• Front face runout: ≤0.003 mm
• Runout at 300 mm: ≤0.01 mm
• Spindle bearings / model: 4x7016
• Drive: V-belt (coding pulley XL)
• Weight: 81.7 kg
• Installation: Horizontal
• Dimensions: A φ170, B φ220, C φ82, D φ100, L 493, L1 260, L2 12
