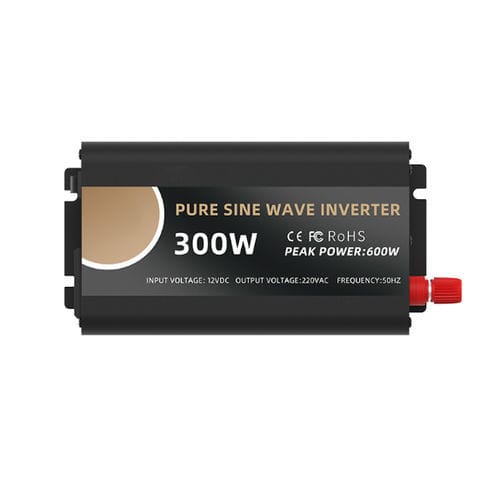

Solar DC/AC inverter VT series

off-gridpure sine wave12 VDC

Performance introduction
An inverter converts direct current (batteries, solar panels, wind turbines, etc.) into alternating current. The VT series uses high-frequency conversion with a ferrite transformer, reducing size and weight compared with traditional silicon-steel transformer designs. The output is a true pure sine wave equivalent to mains supply; appliances whose power does not exceed the inverter rating can be powered directly.

Suitable for

• Various industrial and household appliances
• Lighting systems
• IT equipment and office electronics
• Power tools and machinery
• On-board systems (vehicles, RVs, boats)
• Outdoor and emergency power supply

Short product facts
Input Voltage: 12V / 24V / 48V / 60V / 72V DC
Output Voltage: 110V / 240VAC (selectable)
Warranty: 2-year

Size & Weight (variants)
VT-300U: 183×110×60mm / 1.0kg
VT-600U: 228×173×76mm / 2.0kg
VT-1000U: 310×173×76mm / 3.0kg
VT-1500U: 360×173×76mm / 3.6kg

Technical Parameters (summary table)
Model: 300W | 500W | 1000W | 1500W
Output Power: 300W | 500W | 1000W | 1500W
Display method: 300W - LED; 500W/1000W/1500W - LCD
Input voltage options: 12V / 24V / 48V / 60V / 72V DC
Input range: 12V system 10–15V; 24V system 20–30V; 48V system 40–60V; 60V system 50–75V; 72V system 60–90V
Low-voltage protection: 12V (10.0V ±0.3) | 24V (20.0V ±0.3) | 48V (40.0V ±0.3) | 60V (50.0V ±0.3) | 72V (60.0V ±0.3)
Overvoltage protection: 12V (15.0V ±0.3) | 24V (30.0V ±0.3) | 48V (60.0V ±0.3) | 60V (75.0V ±0.3) | 72V (90.0V ±0.3)
Recovery voltage: 12V (13.2V ±0.3) | 24V (25.5V ±0.3) | 48V (51.0V ±0.3) | 60V (65.0V ±0.3) | 72V (78.0V ±0.3)
No-load current: 0.35A | 0.40A | 0.60A | 0.70A
Overload protection: >110% rated power
Output frequency: 50Hz / 60Hz
Waveform: Pure sine wave
THD: ≤3%
Conversion efficiency: ≈90%
Cooling: Fan cooling
Overheating protection: at approx. 80° ±5°C

Model-specific highlights
VT-1000U: Input 12V/24VDC; Output 220V/230V/240VAC; Continuous 800W; Peak 1600W; Charging current 20A; Dimension 309×180×142mm; Weight 3.5kg
VT-1500U: Input 12V/24VDC; Output 220V/230V/240VAC; Continuous 1500W; Peak 3000W; Charging current 20A; Dimension 384×180×142mm; Weight 4.35kg
VT-2000U: Input 12V/24VDC; Continuous 2000W; Peak 4000W; Charging current 20A; Dimension 454×180×142mm; Weight 5.3kg
VT-3000U: Input 12V/24VDC; Continuous 3000W; Peak 6000W; Charging current 20A; Dimension 529×180×142mm; Weight 6.6kg

Technical features / specifications

• Series / Model family: VT series (VT-300U, VT-600U, VT-1000U, VT-1500U, etc.)
• Input voltage: 12V / 24V / 48V / 60V / 72V DC
• Operating ranges: 12V (10–15V), 24V (20–30V), 48V (40–60V), 60V (50–75V), 72V (60–90V)
• Output voltage: 110V / 220VAC (selectable)
• Output frequency: 50Hz / 60Hz
• Output waveform: Pure sine wave
• Rated output power options: 300W, 500W, 1000W, 1500W (and larger VT models)
• No-load current (by model): 0.35A (300W); 0.40A (500W); 0.60A (1000W); 0.70A (1500W)
• Protection thresholds as listed above
• Display: LED (300W) / LCD (500W and up)
• THD: ≤3%
• Efficiency: approx. 90%
• Cooling: Fan cooling
• Overheating protection around 80°±5°C
• Selected dimensions & weights provided for typical models
