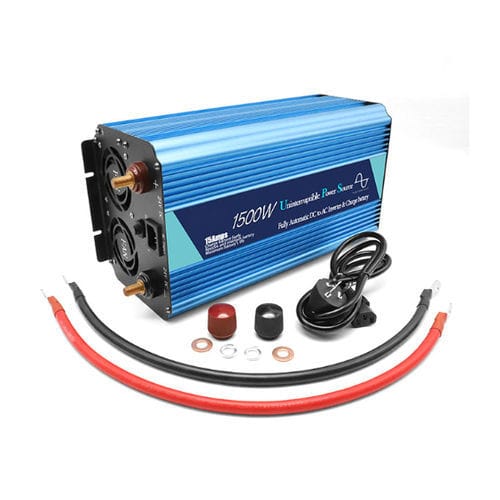

Solar DC/AC inverter VT seriespure sine waveAC voltagesingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- solar
- Electrical characteristics
- pure sine wave, AC voltage, single-phase, 12 VDC, 24V DC
- Applications
- for renewable energy, electronic equipment, for home use, for automobiles, for lighting, for professional applications
- Other characteristics
- outdoor, emergency
- Power
800 W, 1,500 W, 2,000 W, 3,000 W
- Output voltage
220 V, 230 V, 240 V
- Voltage
12 V, 24 V
- Primary current
20 A
Description
Performance introduction
An inverter converts direct current (from batteries, solar panels, wind turbines, etc.) into alternating current. This series uses high-frequency conversion with a ferrite transformer, reducing weight and size compared with traditional silicon-steel transformer designs. In output mode the inverter produces a pure sine wave equivalent to mains power; it can drive connected appliances provided their combined power does not exceed the inverter's rated output.
Suitable for
Warranty
2-year
VT-1000U
Model: VT-1000U
Input Voltage: 12V/24V DC
Output Voltage: 220V/230V/240V AC
Continuous power: 800W
Peak power: 1600W
Charging current: 20 A
Dimensions: 309×180×142 mm
Weight: 3.5 kg
VT-1500U
Model: VT-1500U
Input Voltage: 12V/24V DC
Output Voltage: 220V/230V/240V AC
Continuous power: 1500W
Peak power: 3000W
Charging current: 20 A
Dimensions: 384×180×142 mm
Weight: 4.35 kg
VT-2000U
Model: VT-2000U
Input Voltage: 12V/24V DC
Output Voltage: 220V/230V/240V AC
Continuous power: 2000W
Peak power: 4000W
Charging current: 20 A
Dimensions: 454×180×142 mm
Weight: 5.3 kg
VT-3000U
Model: VT-3000U
Input Voltage: 12V/24V DC
Output Voltage: 220V/230V/240V AC
Continuous power: 3000W
Peak power: 6000W
Charging current: 20 A
Dimensions: 529×180×142 mm
Weight: 6.6 kg
Technical specifications
An inverter converts direct current (from batteries, solar panels, wind turbines, etc.) into alternating current. This series uses high-frequency conversion with a ferrite transformer, reducing weight and size compared with traditional silicon-steel transformer designs. In output mode the inverter produces a pure sine wave equivalent to mains power; it can drive connected appliances provided their combined power does not exceed the inverter's rated output.
Suitable for
- Various household appliances
- Lighting circuits
- IT and electronic equipment
- Office devices
- Power tools
- Vehicle/on-board systems
- Outdoor and emergency power supply
Warranty
2-year
VT-1000U
Model: VT-1000U
Input Voltage: 12V/24V DC
Output Voltage: 220V/230V/240V AC
Continuous power: 800W
Peak power: 1600W
Charging current: 20 A
Dimensions: 309×180×142 mm
Weight: 3.5 kg
VT-1500U
Model: VT-1500U
Input Voltage: 12V/24V DC
Output Voltage: 220V/230V/240V AC
Continuous power: 1500W
Peak power: 3000W
Charging current: 20 A
Dimensions: 384×180×142 mm
Weight: 4.35 kg
VT-2000U
Model: VT-2000U
Input Voltage: 12V/24V DC
Output Voltage: 220V/230V/240V AC
Continuous power: 2000W
Peak power: 4000W
Charging current: 20 A
Dimensions: 454×180×142 mm
Weight: 5.3 kg
VT-3000U
Model: VT-3000U
Input Voltage: 12V/24V DC
Output Voltage: 220V/230V/240V AC
Continuous power: 3000W
Peak power: 6000W
Charging current: 20 A
Dimensions: 529×180×142 mm
Weight: 6.6 kg
Technical specifications
- Input Voltage: 12V/24V DC
- Output Voltage: 220V/230V/240V AC
- Charging current: 20 A
- Warranty: 2-year
- VT-1000U — Continuous: 800W; Peak: 1600W; Size: 309×180×142 mm; Weight: 3.5 kg
- VT-1500U — Continuous: 1500W; Peak: 3000W; Size: 384×180×142 mm; Weight: 4.35 kg
- VT-2000U — Continuous: 2000W; Peak: 4000W; Size: 454×180×142 mm; Weight: 5.3 kg
- VT-3000U — Continuous: 3000W; Peak: 6000W; Size: 529×180×142 mm; Weight: 6.6 kg
- Series type: Pure sine wave UPS inverter
- Technology: High-frequency inverter with ferrite transformer for reduced weight and size
