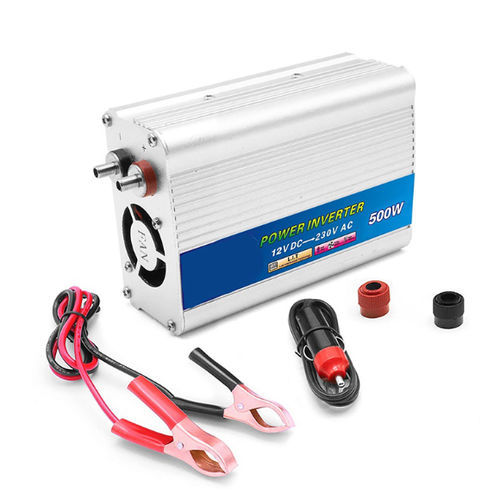

Modified sine wave DC/AC inverter VT series

DCACfor automobiles

Overview
Modified sine wave inverter for converting DC12V/24V to AC220V for automotive and mobile power applications. The output waveform approximates a sine wave using stepped segments; it is compatible with most resistive and many electronic loads, though some sensitive devices may show reduced efficiency or limited function with a modified sine output.

Key features

• Input voltage: 12VDC or 24VDC (model-dependent)
• Protections: high/low voltage, overload, over-temperature
• Terminal input and universal socket output
• Includes clip line and cigarette lighter cable (models dependent)
• Warranty: 2-year

Model table

• VT-500W / VT-M500W — Power: 500W | Input: DC12V / DC24V | Protections: high/low voltage, overload, over-temperature | Terminal input & universal socket output | Accessories: clip line and cigarette lighter line | Weight: 0.66KG | Size: 130*95*55mm
• VT-1000 / VT-M1000W — Power: 1000W | Input: DC12V / DC24V | Protections: high/low voltage, overload, over-temperature | Terminal input & universal socket output | Accessories: clip line and cigarette lighter line | Weight: 0.99KG | Size: 172*95*54mm
• VT-M1500 — Power: 1500W | Input: DC12V / DC24V | Protections: high/low voltage, overload, over-temperature | Terminal input & universal socket output | Accessories: clip line | Net weight: 1.02KG | Size: 225*95*56mm
• VT-M2000 — Power: 2000W | Input: DC12V / DC24V | Protections: high/low voltage, overload, over-temperature | Terminal input & universal socket output | Accessories: clip line | Net weight: 1.35KG | Size: 239*96*56mm

Technical specifications

• Waveform: Modified sine wave (square-like with stepped segments)
• Input voltage: 12VDC or 24VDC (selectable per model)
• Available power variants: 500W, 1000W, 1500W, 2000W (VT series)
• Protections: high voltage protection, low voltage protection, overload protection, over-temperature protection
• Outputs: universal socket and terminal connections
• Accessories: clip line and cigarette lighter line (model dependent)
• Sizes and weights: VT-M500W: 130*95*55mm / 0.66KG; VT-M1000W: 172*95*54mm / 0.99KG; VT-M1500: 225*95*56mm / 1.02KG; VT-M2000: 239*96*56mm / 1.35KG
• Warranty: 2-year
