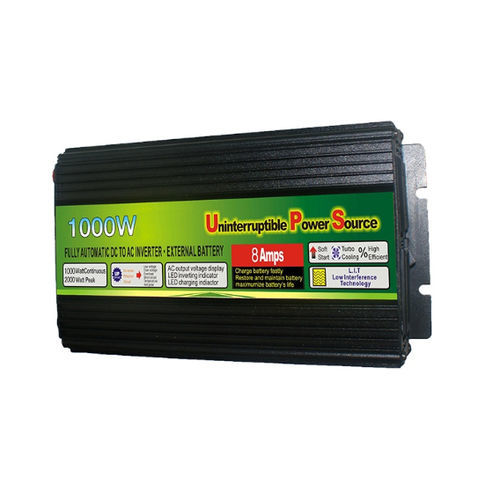

Modified sine wave DC/AC inverter VT-M series

12 VDC24V DCAC

Overview
A modified sine wave inverter produces a stepped waveform approximating a sine wave. It is compatible with most equipment, though some devices may operate with reduced efficiency or limited functionality when powered by a modified waveform.

Basic information

• Input voltage: 12/24VDC (depending on model)
• Functions: high/low voltage, overload, over-temperature protection
• Warranty: 2 years

Features

• High, low voltage, overload and over-temperature protection
• Binding post input and universal socket output
• Additional terminal wiring included
• Cooling fan included

Models and sizes
Model | Power | Input voltage | Description
VT-M1000 | 1000W | DC12V / DC24V | 1. High, low voltage, overload, over temperature protection
2. Binding post input, universal socket output
3. Additional terminal wire
4. With fan
5. Weight: 2.1KG
6. Size: 262*150*76mm
VT-M1200 | 1200W | DC12V / DC24V | 1. High, low voltage, overload, over temperature protection
2. Binding post input, universal socket output
3. Additional terminal wire
4. With fan
5. Weight: 2.60KG
6. Size: 327*150*76mm
VT-M1500 | 1500W | DC12V / DC24V | 1. High, low voltage, overload, over temperature protection
2. Binding post input, universal socket output
3. Additional terminal wire
4. With fan
5. Weight: 2.8KG
6. Size: 316.4*150*76mm
VT-M2000 | 2000W | DC12V / DC24V | 1. High, low voltage, overload, over temperature protection
2. Binding post input, universal socket output
3. Additional terminal wire
4. With fan
5. Weight: 4.1KG
6. Size: 427*150*107mm
VT-M3000 | 3000W | DC12V / DC24V | 1. High, low voltage, overload, over temperature protection
2. Binding post input, universal socket output
3. Additional terminal wire
4. With fan
5. Weight: 6KG
6. Size: 454*180*142mm
VT-M5000 | 5000W | DC12V / DC24V | 1. High, low voltage, overload, over temperature protection
2. Binding post input, universal socket output
3. Additional terminal wire
4. With fan
5. Weight: 9.4KG
6. Size: 600*180*163mm

Technical specifications

• Input voltage: 12VDC or 24VDC (model dependent)
• Output: 110V / 220V / 230V AC (modified sine wave)
• Protection features: high voltage, low voltage, overload, over temperature
• Inputs: binding post input
• Outputs: universal socket output
• Includes additional terminal wiring and cooling fan
• Available power ratings: 1000W, 1200W, 1500W, 2000W, 3000W, 5000W
• Model-specific weights and dimensions listed above
• Warranty: 2 years
