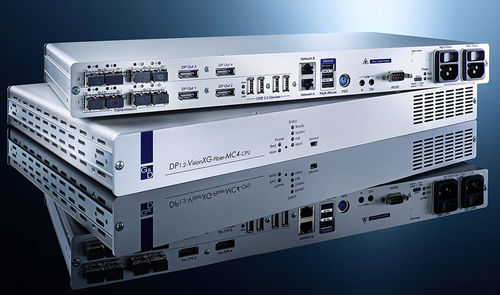

KVM extender DP1.2-VisionXG

industrialnetworkUSB

The DP1.2-VisionXG system is a powerful KVM extender to extend high-resolution 4K and 8K video signals at 60 Hz – pixel-perfect, uncompressed, without any loss and latency-free. The devices are available as variants displaying one, two, three and four video channels. The video channels of the DP1.2-VisionXG are working source synchronously and can be combined on the console side. This enables the display of 4K@120 Hz or 8K@30 Hz when using two video channels and 8K@60 Hz when using four video channels. Optical fibres (9/125 µm single-mode) let you transmit signals over distances of up to 10,000 m. Thanks to the innovative transmission pooling, the image data is combined and bundled with the USB 2.0 keyboard, mouse and audio data. Depending on the application, this helps you save transmission lines. The extender system consists of a computer module (transmitter) and a console module (receiver) and facilitates the remote operation of one computer (up to 10,000 m). The computer module also provides a local port to connect a console module. Device Operation (competing and exclusive) via local or remote console Configuration and update via web application Config Panel 21 (HTML5, Java-free, optimised operation) Galvanic separation of transmitter and receiver (with fiber variants) Resistant against interference radiation Two network interfaces Redundant power and voltage supply Desktop variant including 19” rackmount set Ventilation concept for the use in cold/hot aisle installations Signals DisplayPort 1.2 Support of PS/2 and USB keyboard/mouse; even in mixed mode 100 % permanent keyboard/mouse emulation Transmission of bidirectional audio and RS232 signals by default
