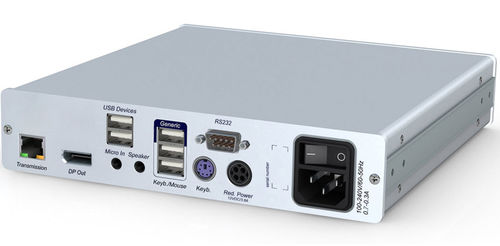

KVM extender DP1.2-Vision

industrialnetworkUSB

The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer on a local or remote console. DP1.2-Vision uses CAT-x cables or fibre optics to transmit signals up to 140 m (CAT) or up to 10,000 m (Fiber). The devices use DisplayPort 1.2 video and are available as single and multi channel variant. It is also possible to transmit transparent USB 2.0, RS232 and audio signals. With its network port, the web interface and monitoring functions, the DP1.2-Vision system offers important features for mission-critical applications. Support of DisplayPort 1.2a video Support of 4K and ultra HD resolutions at 60 Hz Transmission is compressed, pixel perfect, with low latency and ideal hand eye coordination Pixel encoding RGB 4:4:4 with 24bpp / 8bpc Resolution with pixel rates between 25 MP/s and 600 MP/s at the computer module, at the local console and at the user module 24 bit colour depth Horizontal frequency: 25kHz - 295kHz Vertical frequency: 24Hz - 240Hz Screen-Freeze Function If the console module loses the video signal due to a broken connection or a problem with the computer's graphics card, the Screen-Freeze function "freezes" the last displayed image of the monitor. This state is highlighted by a red semi-transparent frame. The function is automatically cancelled when an active video signal exists aga
