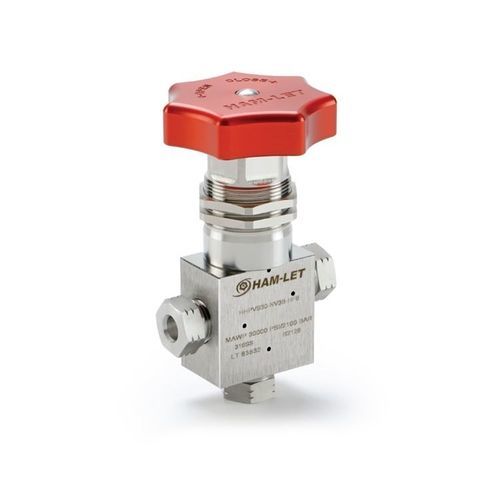

Needle valve HHP series

manualpneumatically-operatedisolation

Product Overview
Browse HHP Needle Valves in the UCT Fittings catalog. The range includes multiple part numbers covering various connection sizes, connection types, operating modes, valve patterns and maximum pressure ratings to suit high-pressure instrumentation and hydraulic applications.

Available Items (table)
Product Code | Connection Size | Connection Type | Operating | Pattern | Max Pressure
HHPVS10NV2SNF8 | 1/2" | Female NPT | Hand Operated | 2 Way - Straight | 10,000 psi (700 bar)
HHPVS10NV2ENF8 | 1/2" | Female NPT | Hand Operated | 2 Way - Angle | 10,000 psi (700 bar)
HHPVS30NV2SHF6 | 3/8" | Female High Pressure | Hand Operated | 2 Way - Straight | 30,000 psi (2,100 bar)
HHPVS30NV2EHF6 | 3/8" | Female High Pressure | Hand Operated | 2 Way - Angle | 30,000 psi (2,100 bar)
HHPVS30NV3BHF6 | 3/8" | Female High Pressure | Hand Operated | 3 Way - 2 Pressure Connection | 30,000 psi (2,100 bar)
HHPVS30NV2SHF9 | 9/16" | Female High Pressure | Hand Operated | 2 Way - Straight | 30,000 psi (2,100 bar)
HHPVS30NV2EHF9 | 9/16" | Female High Pressure | Hand Operated | 2 Way - Angle | 30,000 psi (2,100 bar)
HHPVS30NV3BHF9 | 9/16" | Female High Pressure | Hand Operated | 3 Way - 2 Pressure Connection | 30,000 psi (2,100 bar)
HHPVS60NV2SHF4 | 1/4" | Female High Pressure | Hand Operated | 2 Way - Straight | 60,000 psi (4,200 bar)
HHPVS60NV2EHF4 | 1/4" | Female High Pressure | Hand Operated | 2 Way - Angle | 60,000 psi (4,200 bar)
HHPVS60NV3BHF4 | 1/4" | Female High Pressure | Hand Operated | 3 Way - 2 Pressure Connection | 60,000 psi (4,200 bar)
HHPVS60NV2SHF6 | 3/8" | Female High Pressure | Hand Operated | 2 Way - Straight | 60,000 psi (4,200 bar)
HHPVS60NV2EHF6 | 3/8" | Female High Pressure | Hand Operated | 2 Way - Angle | 60,000 psi (4,200 bar)
HHPVS60NV3BHF6 | 3/8" | Female High Pressure | Hand Operated | 3 Way - 2 Pressure Connection | 60,000 psi (4,200 bar)
HHPVS60NV2SHF9 | 9/16" | Female High Pressure | Hand Operated | 2 Way - Straight | 60,000 psi (4,200 bar)
HHPVS60NV2EHF9 | 9/16" | Female High Pressure | Hand Operated | 2 Way - Angle | 60,000 psi (4,200 bar)
HHPVS60NV3BHF9 | 9/16" | Female High Pressure | Hand Operated | 3 Way - 2 Pressure Connection | 60,000 psi (4,200 bar)
HHPVS10NV2SNF8AO | 1/2" | Female NPT | Air Actuator Normally Open | 2 Way - Straight | 10,000 psi (700 bar)
HHPVS10NV2ENF8AO | 1/2" | Female NPT | Air Actuator Normally Open | 2 Way - Angle | 10,000 psi (700 bar)
HHPVS30NV2SHF6AO | 3/8" | Female High Pressure | Air Actuator Normally Open | 2 Way - Straight | 30,000 psi (2,100 bar)
HHPVS30NV2EHF6AO | 3/8" | Female High Pressure | Air Actuator Normally Open | 2 Way - Angle | 30,000 psi (2,100 bar)
HHPVS30NV3BHF6AO | 3/8" | Female High Pressure | Air Actuator Normally Open | 3 Way - 2 Pressure Connection | 30,000 psi (2,100 bar)
HHPVS30NV2SHF9AO | 9/16" | Female High Pressure | Air Actuator Normally Open | 2 Way - Straight | 30,000 psi (2,100 bar)
HHPVS30NV2EHF9AO | 9/16" | Female High Pressure | Air Actuator Normally Open | 2 Way - Angle | 30,000 psi (2,100 bar)
HHPVS30NV3BHF9AO | 9/16" | Female High Pressure | Air Actuator Normally Open | 3 Way - 2 Pressure Connection | 30,000 psi (2,100 bar)

Characteristics / Technical Specifications

• Product family / series: HHP Needle Valves
• Connection sizes shown: 1/4", 3/8", 1/2", 9/16"
• Connection types shown: Female High Pressure, Female NPT
• Operating modes shown: Hand Operated, Air Actuator Normally Open (as listed)
• Patterns available: 2 Way - Straight, 2 Way - Angle, 3 Way - 2 Pressure Connection
• Maximum pressure ratings available: 10,000 psi (700 bar), 30,000 psi (2,100 bar), 60,000 psi (4,200 bar)
• Multiple part numbers available covering combinations of size, connection type, operating mode and pattern
