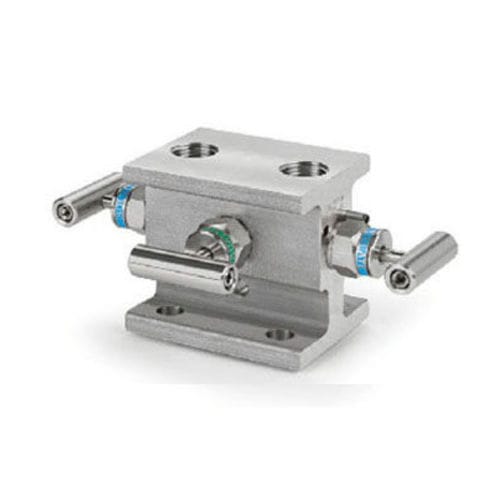

3-way manifold M30H154GFSSVTstainless steelfemaleflange
Add to favorites
Compare this product
Characteristics
- Number of channels
- 3-way
- Material
- stainless steel
- Other characteristics
- female, flange
- Operating pressure
400 bar, 600 bar
(5,802 psi, 8,702 psi)- Port size
0.25 in, 0.38 in, 0.5 in
Description
Fitting of 3 Way Direct Mount Manifold
3 Way Direct Mount Manifold
Products Found: 20
Bonnet Type - Connection Type - Connection Size
HAM-LET ASTAVA manifolds are available with 2, 3 or 5 way instrument options and are 100% compatible with the Petrochemical and Oil & Gas industries.
Construction is 316 stainless steel with O ring (choice of materials) or packing model. The manifold has a safety back set step tip and stop pin. Comes with IEC 61518-A direct mount flange with Grafoil® packing and a max temperature of 550°C (1022°F).
The blowout proof stem is made from 316TI that has a chromium carbide diffusion coating. Manifold is standard NACE MR-01-075. Can be ordered with the optional working pressure up to 10,000 psig.
