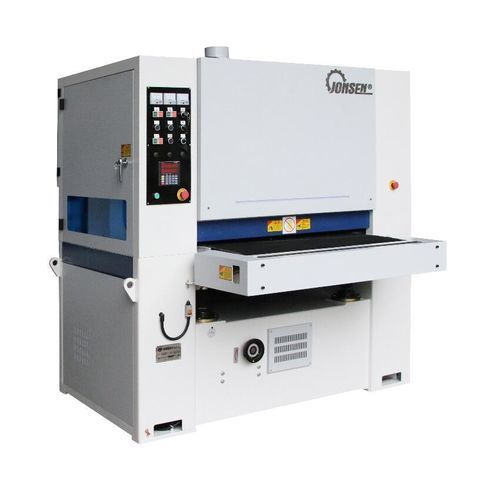

Abrasive belt deburring machine SG1030-NG+JS

cuttingmetal partsautomatic

Product description
Designed for laser-cut flat parts, the SG1030-NG+JS removes projection points and slag while preserving the original surface of workpieces. The machine performs automated abrasive processing in a through-feed layout to reduce labour and consumable costs, suitable for batch processing of stainless steel, carbon steel and non-ferrous metals.

Machine functions

• Remove projection points and slag from laser-cut flat parts while maintaining the original surface condition.
• Automated grinding/abrasive processing to reduce labour and consumable usage.

Features

• Dry through-feed processing for lower production and maintenance cost.
• Set the opening and perform continuous through-feed batch processing for simple, efficient operation.
• Four-column synchronous lifting table combined with a high-temperature conveyor belt to handle varying part thicknesses.
• Proprietary wide-belt trajectory control system with belt-wear micro-adjustment.
• Requires external dust extraction for optimal results (dust extraction unit not included).
• Core high-speed rotating components fitted with imported bearings for durability and stability.
• Patented adjustable permanent-magnet worktable for securing small ferrous parts.

Options & modules

• Option 1: Install patented flexible steel-column hammer block (“one-ring two-grind”) for efficient slag removal from plasma or flame cutting; can be used alone or combined with the belt station.
• Option 2: Add flexible abrasive pad / non-woven cloth pad behind the belt station for micro-chamfering of parts.
• Option 3: Interface with laser cutting parts collection chain conveyor for production-line integration.

Consumables

• Wide strong loop abrasive belts and narrow strong abrasive belts in various grits.

Suitable materials

• Batch processing of stainless steel, non-ferrous metals and similar materials.

Specifications / Technical data

• Processing width: 1000 mm
• Recommended thickness range: 1–70 mm
• Feed speed: 1–5 m/min
• Weight: 2200 kg
