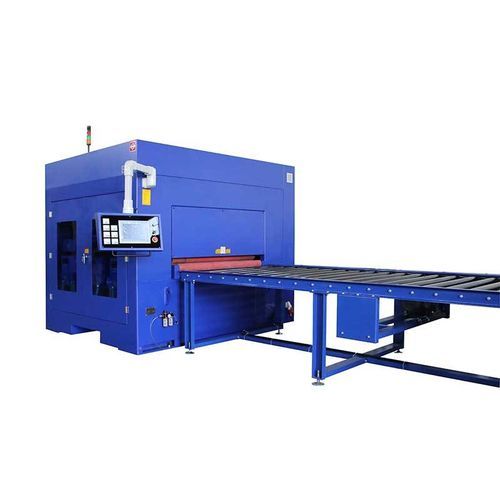

Belt deburring machine SG1600-3TB+3Babrasive beltbelt-mounted hammeredge rounding
Add to favorites
Compare this product
Characteristics
- Type
- belt, abrasive belt, belt-mounted hammer
- Associated function
- edge rounding, deslagging
- Applications
- for steel parts, for large workpieces
- Other characteristics
- double-sided, multi-station, with belt conveyor, pass-through
- Working width
1,600 mm
(62.99 in)
Description
Product description
Double-side de-slagging and edge rounding for parts from plasma, high-power laser and flame cutting machines. Equipped with Jonsen patented carousel-type cross-belt station featuring "one belt two passes" processing. This model has a 1600 mm working width and three top-and-bottom cross-belt stations allowing simultaneous processing of both faces. The first two stations use high-hardness, anti-wear metal-alloy pin blocks that emulate hammering and chiseling to remove slags. The third station is fitted with dense sandpaper abrasive blocks and Scotch Brite flaps for final cleaning and edge rounding.
Applications
Double-side de-slagging and edge rounding of cut steel parts; suitable for high-volume batch processing after plasma, high-power laser or flame cutting.
HIGHLIGHTS
Common consumables
Ideal parts
Technical specifications
Double-side de-slagging and edge rounding for parts from plasma, high-power laser and flame cutting machines. Equipped with Jonsen patented carousel-type cross-belt station featuring "one belt two passes" processing. This model has a 1600 mm working width and three top-and-bottom cross-belt stations allowing simultaneous processing of both faces. The first two stations use high-hardness, anti-wear metal-alloy pin blocks that emulate hammering and chiseling to remove slags. The third station is fitted with dense sandpaper abrasive blocks and Scotch Brite flaps for final cleaning and edge rounding.
Applications
Double-side de-slagging and edge rounding of cut steel parts; suitable for high-volume batch processing after plasma, high-power laser or flame cutting.
HIGHLIGHTS
- Double-side processing — heavy parts with slags facing down do not require flipping
- Feed-through design for continuous batch processing
- Heavy-duty pinch rollers ensure firm clamping during feed
- Essential rollers are dynamically balanced and fitted with high-speed-rated bearings
- Flexible workstation configuration with multiple consumable options
- User-friendly control interface; automated material handling can be customized
- Designed for efficient dust extraction to minimize metal dust exposure
Common consumables
- Pin blocks (metal-alloy)
- Abrasive blocks (dense sandpaper blocks, Scotch Brite flaps)
Ideal parts
- Steel parts in high-volume batch processing after cutting
Technical specifications
- Model: SG1600-3TB+3B
- Maximum working width: 1600 mm
- Working thickness range: 3 - 80 mm
- Conveyor speed: 1 - 5 m/min
- Weight: 10000 kg
- Processing method: Three cross-belt stations (top & bottom) — two stations with high-hardness anti-wear metal-alloy pin blocks and one station with abrasive blocks for finishing and edge rounding
- Feed type: Feed-through for continuous/batch processing
- Clamping: Heavy-duty pinch rollers
- Bearings: High rotational speed-rated bearings for essential rollers
- Dust control: Designed for installation of dust extraction system
