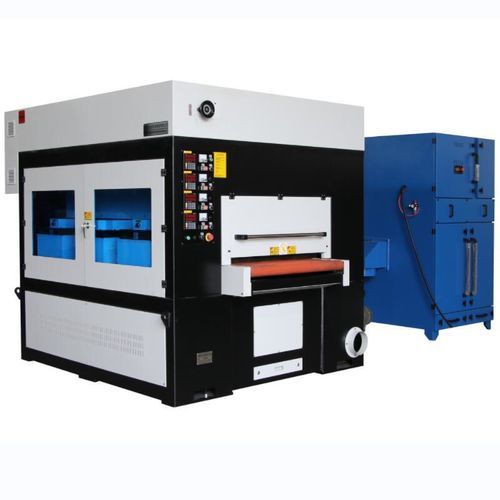

Cutting finishing machine SG1030-3TB

chamferingdeburringCNC

Product overview
SG1030-3TB is a through-feed deburring, micro-chamfering and edge-rounding machine designed for plasma and flame-cut parts. Workpieces are fed in batches on a track conveyor for high-throughput processing. The core grinding mechanism uses the 祥生 patented "one-round two-grind chamfering and deburring" method with dedicated elastic steel-pin and flexible abrasive-disc cartridges to target only edges and hole perimeters for clean, efficient automated finishing, reducing manual rework and consumable costs. Suitable for heavy-load batch processing of carbon steel components.

Key features

• Through-feed design for continuous batch processing.
• Simple setup for high-efficiency repetitive runs after opening setting.
• Adjustable magnetic worktable, ideal for varying part sizes in batches.
• Optional dust extraction yields improved surface cleanliness and complies with workshop environmental requirements.

Additional points

• High-speed rotating components fitted with imported bearings for long-term stable operation.
• Modular abrasive-block design allows customers to configure grinding materials according to process needs.
• Common consumables: elastic steel-pin abrasive cartridge, flexible abrasive-disc cartridge.
• Recommended for: batch cutting of carbon steel parts.

Specification table
Processing width: 1000 mm
Recommended thickness: 3–80 mm
Feed speed: 1–5 m/min
Weight: 5000 kg

Features / Technical specifications

• Model: SG1030-3TB
• Processing mode: through-feed, track conveyor batch feeding
• Core mechanism: 祥生 patented "one-round two-grind chamfering and deburring"
• Consumable types: elastic steel-pin abrasive cartridge / flexible abrasive-disc cartridge
• Applicable materials: carbon steel and similar metal workpieces (high-load batch processing)
• Options: dust extraction unit to improve cleanliness and environmental compliance
• Machine highlights: adjustable magnetic worktable, modular replaceable abrasive blocks
