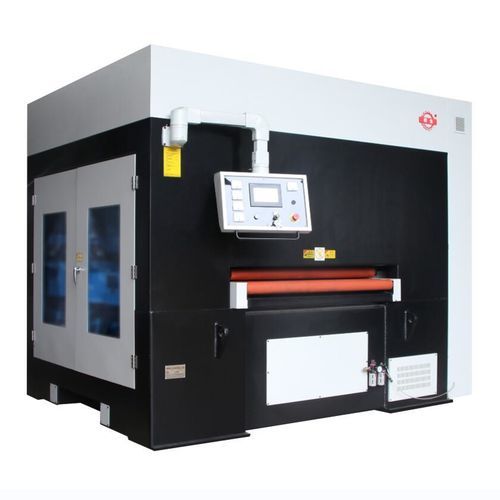

Electric chamfering machine SG1300-3TB+B

edgeautomatic

Product description
SG1300-3T+B effectively removes dross from plasma and flame-cut parts while providing clean top and bottom surfaces and smooth, rounded edges. The series' core grinding mechanism uses 祥生's patented "one-circle two-grind deburring machine and method" and is equipped with special elastic steel-pin abrasive cartridges and elastic sanding-pad abrasive cartridges. These focus grinding only on part edges and hole perimeters for efficient, clean automatic processing, significantly reducing manual finishing effort and consumable costs. Suitable for high-load batch processing of carbon steel parts.

Features

• Double-sided processing — large cut parts with slag down do not require flipping.
• Pass-through batch processing with preset opening for simple and efficient operation.
• Heavy-duty roller clamping conveyor, robust and durable.
• Best results when equipped with dust extraction system.
• Core high-speed rotating components fitted with imported bearings.
• Modular abrasive-block design for manufacturing and maintenance.

Common consumables
Elastic steel-pin abrasive cartridges / elastic sanding-pad abrasive cartridges.

Suitable for processing
Batch cutting of carbon steel parts.

Specifications
Processing width: 1300 mm
Recommended thickness: 3-80 mm
Feed speed: 1-5 m/min
Weight: 7800 kg

Features / Technical specifications

• Model: SG1300-3TB+B (series for dross removal, micro-chamfering and edge rounding).
• Applicable materials: carbon steel and similar mass-cut parts.
• Processing mode: automatic double-sided grinding, pass-through batch processing.
• Main structure: 祥生 patented "one-circle two-grind" grinding mechanism, elastic steel-pin and elastic sanding-pad abrasive cartridges.
• Conveying system: heavy-duty roller clamping conveyor suitable for high-load continuous production.
• Key components: core high-speed rotating parts with imported bearings; modular abrasive blocks for easy maintenance and replacement.
• Common consumables: elastic steel-pin abrasive cartridges / elastic sanding-pad abrasive cartridges.
• Recommended configuration: pair with a dust extraction system for optimal performance.
