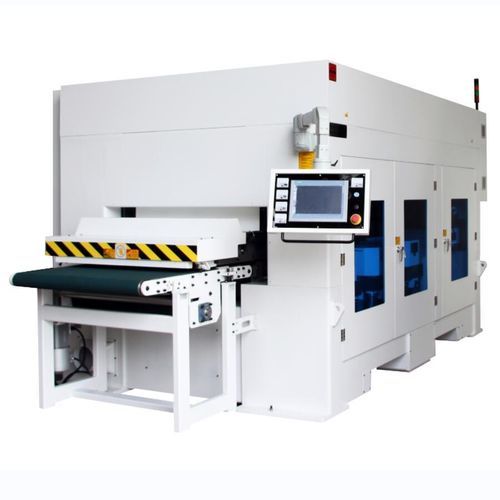

Surface grinding machine SG series

for metal sheetsworkpiecewith fixed table

Product overview
Designed to remove residual slag from plasma and flame-cut workpieces while delivering clean top and bottom surfaces and rounded, smooth edges. Suitable as a double-sided grinding solution for large, medium and small parts on intelligent production lines. The core grinding mechanism uses 祥生's patented "one-circle two-grind chamfering deburring machine and method" and is equipped with special elastic steel-pin abrasive cartridges and elastic abrasive-sheet cartridges that target part edges and hole edges for efficient, clean automatic grinding, significantly reducing manual grinding effort and consumable costs. The system is suited for high-volume, high-load processing and is particularly appropriate for slag removal after plasma or flame cutting. The equipment supports host-computer control with open interfaces for integration into centralized intelligent line control systems.

Models
SG1030-3TB+B / SG2400-3TB+B

SG1030-3TB+B — for small parts at intelligent sorting terminals: key features

• High-rigidity welded frame with sand-blasted finish.
• Conveyor system featuring a unique design and staged magnetic worktable for front- and back-side adsorption.
• Small parts can be processed double-sided without flipping.
• Through-style batch processing with fixed device aperture for simple and efficient operation.
• Core high-speed rotating components fitted with imported bearings.
• Modular abrasive-block design and manufacturing process.
• Slag collection device and dust extraction system for a clean processing environment.
• Common consumables: elastic steel-pin abrasive cartridges / elastic abrasive-sheet cartridges.
• Optional model available with 1300 mm width.

SG1030-3TB+B — specifications
Processing width: 1000 mm
Recommended thickness: 3–80 mm
Feed speed: 1–5 m/min
Weight: 10000 KGS

SG2400-3TB+B — for large parts at intelligent sorting terminals: key features

• High-rigidity welded frame with sand-blasted finish.
• Through-style batch processing with fixed device aperture for simple and efficient operation.
• Heavy-duty clamp-roller conveyor system.
• Core high-speed rotating components fitted with imported bearings.
• Modular abrasive-block design and manufacturing process.
• Slag collection device and dust extraction system for a clean processing environment.
• Common consumables: elastic steel-pin abrasive cartridges / elastic abrasive-sheet cartridges.
• Optional machines available with widths above 2400 mm.

SG2400-3TB+B — specifications
Processing width: 2400 mm
Recommended thickness: 3–80 mm
Feed speed: 1–5 m/min
Weight: 13000 KGS

Additional features

• The core grinding mechanism is a 祥生 patented structure that automatically grinds edges and hole edges to reduce manual labor and consumable use.
• The equipment supports host-computer control with open interfaces for easy integration into centralized intelligent production line control systems.

Characteristics / Technical specifications

• Applicable processes: slag removal and edge rounding for plasma and flame cutting offcuts.
• Common consumables: elastic steel-pin abrasive cartridges, elastic abrasive-sheet cartridges.
• Control: host-computer control, open interfaces, supports intelligent production line integration.
• Typical thickness range: 3–80 mm.
• Typical feed speed: 1–5 m/min.
• Example processing widths: SG1030-3TB+B — 1000 mm; SG2400-3TB+B — 2400 mm (wider models optional).
• Example machine weights: SG1030-3TB+B — 10000 KGS; SG2400-3TB+B — 13000 KGS.
