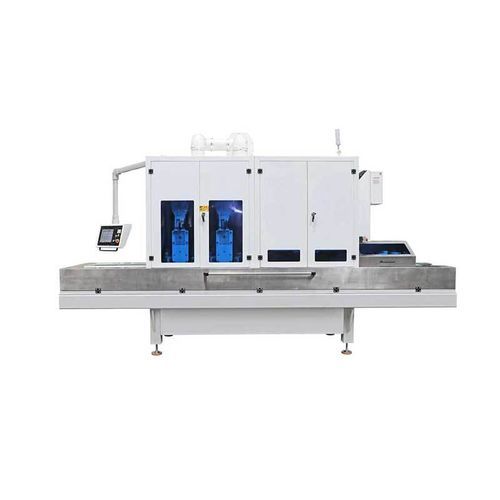

Brush deburring machine SD300-2WJS+2D

discabrasive beltbrushing

Applications: SD300-2WJS+2D is engineered for deburring, edge rounding and surface finishing of fine-blanking, punching and flat precision-machined parts. It is optimized for high-volume production directly after presses, ensuring consistent edge quality on ferrous components.

Highlights:

• Wet operation to extend consumables' lifespan and cool parts during processing
• Four work stations: 2 wide abrasive belt heads and 2 planetary disk brush stations, each with individual motorized lift
• Standard magnetic conveyor table to support small ferrous parts and improve part handling
• Rigid welded steel frame for industrial duty and reduced maintenance
• In-line conveyor feed for high throughput
• Programmable automatic abrasive compensation over time
• Automatic cutting fluid filtration unit
• Capable of processing a wide range of ferrous parts

Optional configuration:

• Automatic flipping and looping conveyor
• Optional de-magnetizing unit at machine exit
• Planetary disk brush stations only

Technical Datasheet: Maximum working width: 300 mm
Disk brush dimension: φ165 mm
Working thickness range: 1-200 mm
Conveyor table height (fixed): 940 mm
Conveyor feeding rate: 0.5-5 m/min
Wide abrasive belt dimension: 1900 x 300 mm
Planetary disk brush rotational speed: 0-1480 r/min (variable by VFD)
Planetary rotational speed: 10-50 r/min (variable by VFD)
Total power: 23 kW
Machine weight: 4500 kg
Machine dimension (LxWxH): 4950 x 1450 x 2150 mm

Characteristics / technical specifications:

• Model: SD300-2WJS+2D
• Maximum working width: 300 mm
• Disk brush dimension: φ165 mm
• Working thickness range: 1-200 mm
• Conveyor table height (fixed): 940 mm
• Conveyor feeding rate: 0.5-5 m/min (variable)
• Wide abrasive belt dimension: 1900 x 300 mm
• Planetary disk brush speed: 0-1480 r/min (VFD)
• Planetary rotational speed: 10-50 r/min (VFD)
• Total power: 23 kW
• Machine weight: 4500 kg
• Machine dimension (LxWxH): 4950 x 1450 x 2150 mm
