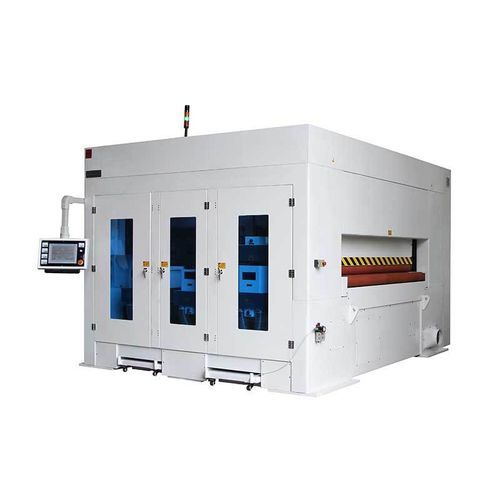

Belt deburring machine SG1030-3TB+B

brush rollerabrasive beltbelt-mounted hammer

Applications
After cutting, parts are first sorted by size and category, then routed to dedicated de-slagging machines. SG1030-3TB+B is configured for small parts; larger parts are processed on wider machines. Randomly loaded parts (manually or by automation) travel on a conveyor where visually guided robotic arms sort and distribute them to secondary conveyors feeding the de-slagging stations. The line includes a patented carousel-type cross-belt station with a "one belt two passes" process. Each machine (1000 mm and 2400 mm working widths) shares the same workstation layout: three top-and-bottom cross-belt stations allowing simultaneous processing of both sides. The first two cross belts use high-hardness, wear-resistant metal-alloy pin blocks to hammer and chisel off slags; the third cross belt uses dense abrasive blocks and Scotch-Brite flaps to clean and round edges and holes, removing sharpness.

Machine characteristic overview

• Heavy welded main frame: sand-blasted and powder-coated finish
• Sectional conveyor design enabling true double-side processing
• Feed-through, batch parts processing
• Balanced essential rollers with high-speed rated bearings
• Flexible workstation configurations; multiple consumable types available
• Integrated dust extraction to minimize metal dust exposure
• Common consumables: pin blocks and abrasive blocks
• Optional working widths configurable: 1000 mm (standard), 1300 mm and 1600 mm

Optional configuration
Optional triangular narrow abrasive belt head available for high-power laser-cut parts with hard, molten slags.

Technical datasheet
Maximum working width: 1000 mm
Working thickness range: 3–80 mm
Conveyor speed: 1–5 m/min
Weight: 10000 kg

Technical specifications

• Model: SG1030-3TB+B
• Maximum working width: 1000 mm
• Working thickness range: 3–80 mm
• Conveyor speed: 1–5 m/min
• Weight: 10000 kg
• Workstation configuration: 3 top-and-bottom cross-belt stations (two fitted with metal-alloy pin blocks; third fitted with abrasive blocks)
• Processing mode: simultaneous double-side processing; feed-through batch handling
• Frame: welded, sand-blasted, powder-coated heavy construction
• Consumables: pin blocks, abrasive blocks; optional triangular narrow abrasive belt head for heavy laser slag
• Available working widths: standard 1000 mm; optional 1300 mm and 1600 mm
