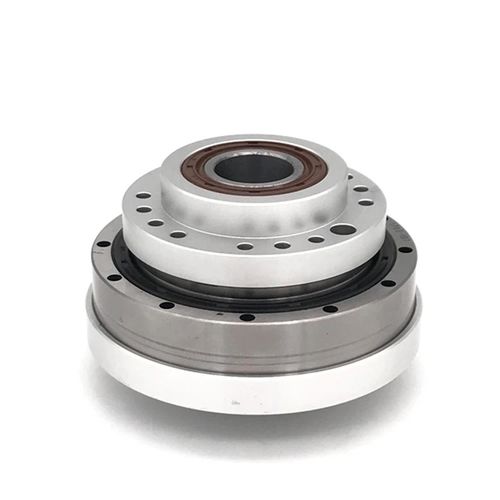

Harmonic gear reducer SHF-17-II

coaxialhollow-shaft20 - 50 Nm

what is Harmonic Drive Reducer? The type of harmonic drive reducer is a gear mechanism known for its precision and compact design. It primarily consists of three components: the flexspline, the circular spline, and the wave generator. Flexspline: This is a flexible, thin-walled gear that deforms when engaged. It is designed to flex and return to its original shape, which helps in transmitting motion with high precision. Circular Spline: This is a rigid, fixed gear with internal teeth that mesh with the flexspline. It remains stationary while the flexspline rotates. Wave Generator: An elliptical component that fits inside the flexspline and generates a wave-like motion. As the wave generator rotates, it creates a deformation in the flexspline, allowing it to mesh with the circular spline and transmit motion. Harmonic drive reducers are used in applications requiring high precision and compact size, such as robotics, aerospace, and medical devices. Their ability to provide smooth, accurate motion with minimal backlash makes them a popular choice for advanced motion control systems. what are the Features of Harmonic Drive Reducer? Compact Structure Designed to be space-efficient, allowing for integration into tight or constrained environments. 01 High Torque Capacit Capable of transmitting substantial torque relative to its size, suitable for demanding applications. 02 High Rigidity Provides exceptional rigidity for stable and precise motion control, even under significant loads. 03 Large Aperture Features a sizable central opening, facilitating the passage of other components or shafts through the reducer.
