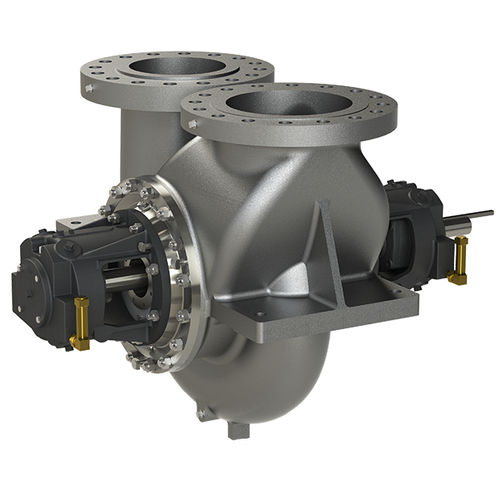

Impeller pump D

waterelectricindustrial

Double Suction Pumps Single-stage, horizontally or radially split pumps using a double suction impeller. Features a rugged design that is particularly suited for hazardous, safe-guarding conditions. Design Features of Hayward Tyler Double Suction Pumps Horizontally or radially split casing Double suction on rigid shaft with low NPSHr Casing and impeller wear rings as standard Shaft fully protected from the pump fluid Hardened shaft sleeves supplied for longer life Designed for continuous duty in high-temperature applications Dual volute with impeller between bearings to minimize radial thrust and shaft deflection Pump feet on horizontal centerline allows for thermal expansion without affecting alignment Volute casing keyed to the baseplate to confine thermal expansion to vertical plane Pump cover gasket designed for even temperature across its whole area Bearing bracket bolted to pump cover to provide rigid frame for bearing housing Applications Hayward Tyler Double Suction Pumps are ideal for the following applications: Cooling Water Fuel Pool Cooling Condensate Pump Reactor Building Spray Decay Heat Removal Cooling Tower Circulation Component Cooling Water Normal Component Cooling Heater Drain Pump Suppressions Pool Clean Up Spent Fuel Cooling Circ Cooling Water Aux. Component Cooling Water Spray Component Cooling Pump
