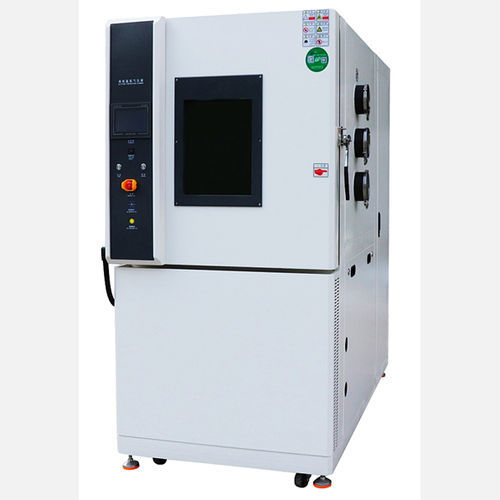

Thermostatic test chamber HCTE0028temperatureenvironmentalfor automobiles
Add to favorites
Compare this product
Characteristics
- Type
- thermostatic
- Controlled parameter
- temperature
- Test type
- environmental
- Product applications
- for automobiles
- Application domain
- for quality control
- Other characteristics
- low-temperature, low-pressure
- Temperature
Min.: -70 °C
(-94 °F)Max.: 150 °C
(302 °F)- Interior length
600 mm, 700 mm, 1,000 mm
(23.62 in, 27.56 in, 39.37 in)- Interior height
600 mm, 700 mm, 1,000 mm
(23.62 in, 27.56 in, 39.37 in)- Interior depth
600 mm, 800 mm, 1,000 mm
(23.62 in, 31.5 in, 39.37 in)- External length
1,900 mm, 2,650 mm, 2,750 mm, 3,250 mm
(74.8 in, 104.3 in, 108.3 in, 128 in)- External height
1,320 mm, 1,550 mm, 1,750 mm, 2,000 mm
(51.97 in, 61.02 in, 68.9 in, 78.74 in)- External depth
1,200 mm, 1,400 mm, 1,500 mm
(47.24 in, 55.12 in, 59.06 in)
Description
It is mainly used in aerospace information electronics and other fields to determine the environmental adaptability and reliability test of instruments, electrical products, materials, parts and equipment under low pressure, high temperature and low temperature or at the same time, and to measure the electrical performance parameters of specimens when they are energized.
Standard:
GJB150.3-1986 high-temperature test;
GJB150.4-1986 low-temperature test;
GJB150.6-1986 temperature height test;
IEC 60068-2-1: 2007, Environmental Testing – Part 2-1: Tests - Tests A: Cold, IDT；
IEC60068-2-2:2007,Environmental testing-Part 2-2:TestsTestB:Dryheat,IDT；
GJB360A-1996 Method 105: Low pressure test;
IEC 60068-2-13:1983,Basic environmental testing procedures-
Part 2:TestM:Low air pressure,IDT
IEC60068-2-40:1976,Basic environmental testing procedures- Part2:Tests TestZ/AM:Combined cold/low air pressure tests,IDT
GB/T2423.26-1992 test Z / BM: comprehensive test of high temperature / high pressure.
