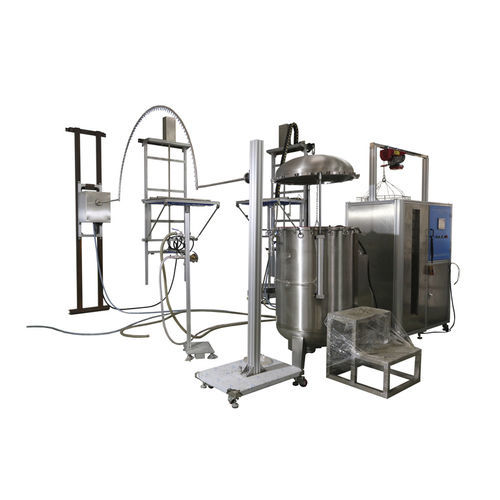

Rain test equipment HCTE0078
waterproofingautomaticmanual

rain test equipment
rain test equipment
rain test equipment
rain test equipment
rain test equipment
Add to favorites
Compare this product


Characteristics

Test type
rain, waterproofing
Operating mode
automatic, manual, computer-controlled, semi-automatic, PLC-controlled
Test material
battery, vehicle, for electronic components, for rearview mirror
Sector
for the automotive industry, for laboratories, industrial, for quality control, for workshops, for the electronics industry
Configuration
vertical

Description

Vertical Drip Rain Testing Machine Description This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2,IEC60884-1 clause 16.2.2 The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test; It is also equipped with 15°bevel for supporting sample for the IPX2 test. Oscillating Tube Tester for IPX3 and IPX4 Product information: Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4,IEC60335-1 clause 15.1. It is used for the waterproof test of the electrical equipment. The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle. The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved. Spray Nozzle Product information: The spray nozzle is designed and manufactured in accordance with IEC60529 clause IPX3 and IPX4, IEC60335-1 clause 15.1. It is used for the waterproof test of the electric appliance. Some parts of the enclosure cannot be wet by the oscillating tube. Under this circumstance, the handheld spray nozzle is used by manual. The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.
