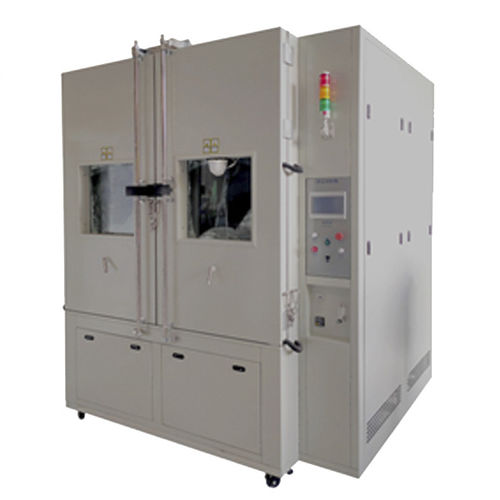

Dust test chamber HCTE0036

sandfor automobilesfor vehicles

This equipment is suitable for the test of electrical electronics, automobiles, motorcycle parts, and seals to prevent sand dust from entering the seals and housing in a sand dust environment.To test the use, storage and transportation performance of electronic and electrical products, automobiles, motorcycle parts, and seals in the sand and dust environment.The purpose of the test was to determine the possible harmful effects of the particles carried by the air flow on the electrical products. Test Purpose： The test can be used to simulate open sand and dust air ambient conditions induced by natural or artificial disturbances such as vehicle motion. Meet The Standards： Test requirements of household appliances, low voltage appliances, automobile, motorcycle parts enclosure in GB4208-2017-13.4, IEC60529:2013-13.4, GBT2423.37-2006-La2, IEC60068-2-68-La2, ISO20653-La2. Design Principle： Design a conical funnel with a dust collection outlet at the bottom. Install the high pressure turbine circulation fan inlet at the vacuum extraction outlet (bottom) to send the extracted dust to the top of the inner box from top to bottom, so that the cycle will begin.
