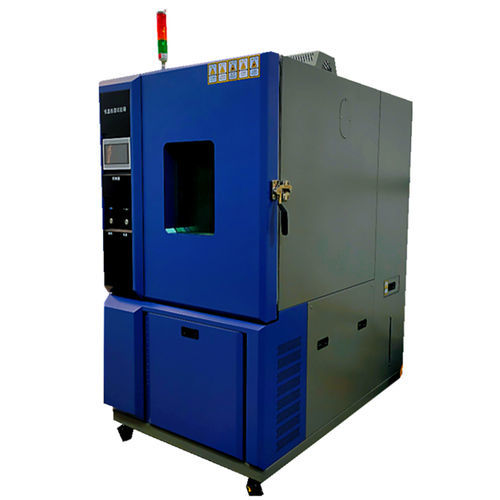

Climate chamber HCTE0030humiditytemperaturefor rapid temperature cycling
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature, humidity
- Test type
- for rapid temperature cycling
- Product applications
- for electrical equipment, for vehicles, for automobiles, for motors, for auto lamp, for materials testing machines
- Application domain
- for quality control
- Configuration
- floor-standing, on casters
- Options and accessories
- with window
- Other characteristics
- low-temperature, for high temperatures, alternating
- Temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)- Interior length
800 mm, 1,000 mm, 1,800 mm
(31.5 in, 39.37 in, 70.87 in)- Interior height
850 mm, 1,000 mm
(33.46 in, 39.37 in)- Interior depth
600 mm, 800 mm, 1,000 mm
(23.62 in, 31.5 in, 39.37 in)- External length
1,060 mm, 1,700 mm, 2,200 mm
(41.7 in, 66.9 in, 86.6 in)- External height
1,880 mm, 2,050 mm, 2,200 mm
(74.02 in, 80.71 in, 86.61 in)- External depth
2,300 mm, 3,000 mm, 3,350 mm
(90.55 in, 118.11 in, 131.89 in)
Description
It is suitable to conduct high and low temperature, wet and heat tests for electricians, electronics, machinery and other products, parts, materials, and to conduct quality and reliability tests for products, parts and materials under simulated temperature and humidity changes.
Meet The Standards:
GJBl50.9-2009 (MIL-STD-810D) Hot and heat test method;
GJB360.8-2009(MIL-STD.202F) High-temperature life test;
GJBl50.3-2009 (M-I L-STD-810D);High temperature test method
GJBl50.4-2009 (MIL-STD-8 I 0 D);Low temperature test method
GB-2423.1-2008 (IEC68-2-1) Test A: Low temperature test method;
GB-2423.2-2008 (IEC68-2-2) Test B: High temperature test method;
GB2423.3-2008 (IEC68-2-3) Test Ca: Constant heat and humidity test method;
GB2423.4-2008 (IEC68-2-30) Test Db:Alternating humid heat test method
Feature:
1.Heater air burning to prevent the protection switch, heater over current circuit breaker, circulating fan overcurrent overload protection.
2.Compressor high-voltage protection switch, compressor overheat protection switch, compressor overcurrent protection switch.
3.Underphase protection switch, circuit breaker, no-fuse switch, zero crossing brake fluid power controller.
4.When the above protection occurs, the equipment stops running and emits a sound and light alarm while displaying the fault position on the instrument.
Use The Installation Conditions：
Surrounding environment: Operation guaranteed ambient temperature range: 20~28℃, relative humidity: 85%RH,380V ± 10%V; 50Hz; three-phase four-wire + grounding wire, protective grounding resistance is less than 4 Ω.
