Climate chamber HCTE0029
humiditytemperaturefor automobiles

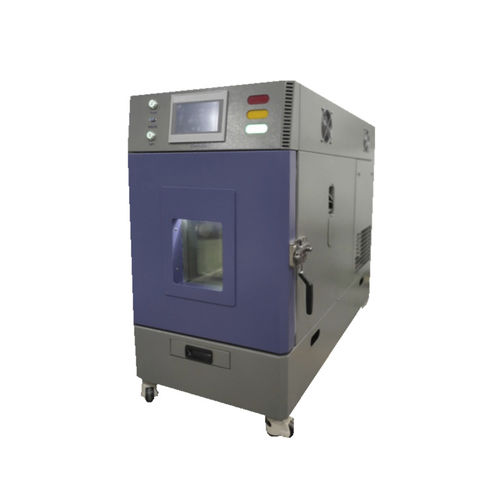

Climate chamber - HCTE0029 - HCTE PTE. LTD. - humidity / temperature / for automobiles
Climate chamber - HCTE0029 - HCTE PTE. LTD. - humidity / temperature / for automobiles
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Product applications
for electrical equipment, for solar panels, for vehicles, for automobiles, for auto lamp, for electronic circuit boards, for semiconductors
Application domain
for small parts production
Configuration
floor-standing, on casters
Options and accessories
with window, with constant temperature and humidity control
Other characteristics
low-temperature, for high temperatures
Temperature

Min.: -20 °C
(-4 °F)

Max.: 150 °C
(302 °F)

Interior length

400 mm, 500 mm, 600 mm, 1,000 mm
(15.75 in, 19.69 in, 23.62 in, 39.37 in)

Interior height

500 mm, 600 mm, 750 mm, 850 mm, 1,000 mm
(19.69 in, 23.62 in, 29.53 in, 33.46 in, 39.37 in)

Interior depth

400 mm, 500 mm, 600 mm, 800 mm, 1,000 mm
(15.75 in, 19.69 in, 23.62 in, 31.5 in, 39.37 in)

External length

600 mm, 700 mm, 800 mm, 1,200 mm
(23.6 in, 27.6 in, 31.5 in, 47.2 in)

External height

1,650 mm, 1,760 mm, 1,910 mm, 2,010 mm, 2,035 mm
(64.96 in, 69.29 in, 75.2 in, 79.13 in, 80.12 in)

External depth

Min.: 1,200 mm
(47.24 in)

Max.: 2,050 mm
(80.71 in)

Description

Products Introduction: The test machine is mainly used for electronics, electrical, food, automobile, oak plastics, metal, parts and other products, transportation and materials in high and low temperature hot and humid environment; it is the reliability test equipment for electronics, electrical, electrical, plastic and pipe engineering. Application: It is applicable to the cold, heat, moisture and dry resistance test of various electronic, electrical, electrical, plastic and other raw materials and devices and the reliability test equipment of quality control engineering. Feature: 1.It is especially suitable for the high temperature resistance, low temperature resistance and humidity resistance cycle test of optical fiber, LCD, crystal, inductance, PCB, battery, computers, mobile phones, rubber, plastic and other products; 2.This machine can simulate different environmental conditions such as high temperature and high humidity / high temperature, low humidity / low temperature / high temperature / low temperature, with easy operation and learning of high accuracy programming control and fixed-point control system, to provide the best test environment. Meet the standards: GB-2423.1-2008 (IEC68-2-1) Test A: Low-temperature test method. GB-2423.2-2008 (IEC68-2-2) Test B: High-temperature test method. GJB360.8-2009(MIL-STD.202F) High-temperature life test. GJBl50.3-2009 (M-I L-STD-810D). GJBl50.4-2009 (MIL-STD-8 I 0 D). GB2423.3-2008 (IEC68-2-3) Test Ca: constant heat and humidity test method. GB2423.4-2008 (IEC68-2-30) Test Db: heat heat test method. GJBl50.9-2009 (MIL-STD-810D) wet-heat test method.
