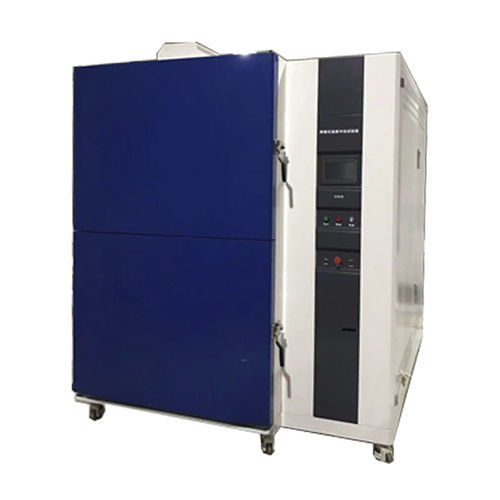

Thermostatic test chamber HCTE0031temperaturethermal shockfor rapid temperature cycling
Add to favorites
Compare this product
Characteristics
- Type
- thermostatic
- Controlled parameter
- temperature
- Test type
- for rapid temperature cycling, thermal shock
- Product applications
- for vehicles, for automobiles, for semiconductors, thermoplastic pipe, for materials testing machines
- Application domain
- for quality control
- Configuration
- floor-standing, on casters
- Other characteristics
- low-temperature, for high temperatures
- Temperature
Min.: -65 °C
(-85 °F)Max.: 150 °C
(302 °F)- Interior length
500 mm, 600 mm, 700 mm
(19.69 in, 23.62 in, 27.56 in)- Interior height
350 mm, 400 mm, 500 mm, 600 mm
(13.78 in, 15.75 in, 19.69 in, 23.62 in)- Interior depth
400 mm, 500 mm, 600 mm
(15.75 in, 19.69 in, 23.62 in)- External length
1,500 mm, 1,620 mm, 1,850 mm
(59.1 in, 63.8 in, 72.8 in)- External height
1,740 mm, 1,970 mm, 2,040 mm, 2,300 mm
(68.5 in, 77.56 in, 80.31 in, 90.55 in)- External depth
1,900 mm, 2,300 mm, 2,450 mm, 2,500 mm
(74.8 in, 90.55 in, 96.46 in, 98.43 in)
Description
The hot and cold impact test machine is to test whether the product has a bad impact due to the rapid changes of high and low temperature without moving the items to be tested. It is a necessary test equipment for metal, plastic, rubber, electrical and electronics, auto parts and other material industry.
Meet The Standards：
GJB 150.4-1986 Low-temperature test;
GJB 150.3-1986 High-temperature test;
GJB 150.5-1986 Temperature impact test;
GB / T 5170.2-1996 Temperature test equipment;
GB / T 2423.1-2001（IEC60068-2-1:1990） test A: Low temperature test method;
GB / T 2423.2-2001（IEC60068-2-2:1974）test B: High temperature test method;
GB / T 2423.22-2002（IEC60068-2-14:1984）test N: Temperature change test method test Na.
