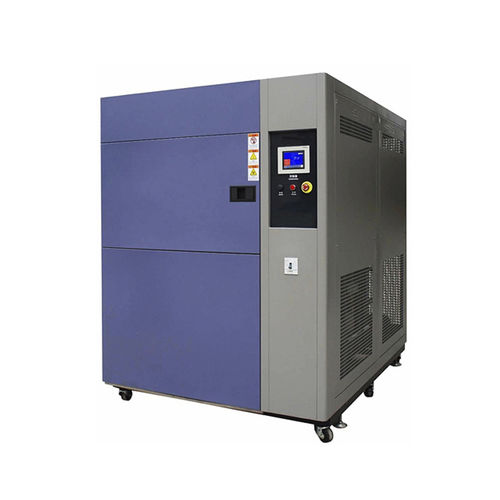

Temperature test chamber HCTE0032
thermal shockfor automobilesfor materials testing machines

Temperature test chamber - HCTE0032 - HCTE PTE. LTD. - thermal shock / for automobiles / for materials testing machines
Temperature test chamber - HCTE0032 - HCTE PTE. LTD. - thermal shock / for automobiles / for materials testing machines
Add to favorites
Compare this product

Characteristics

Controlled parameter
temperature
Test type
thermal shock
Product applications
for electrical equipment, for vehicles, for automobiles, device, for wires, for electronic circuit boards, for semiconductors, thermoplastic pipe, for materials testing machines
Application domain
for quality control
Configuration
on casters
Other characteristics
low-temperature, for high temperatures, thermal
Temperature

Max.: 150 °C
(302 °F)

Min.: -65 °C
(-85 °F)

Interior length

400 mm, 500 mm, 600 mm, 650 mm
(15.75 in, 19.69 in, 23.62 in, 25.59 in)

Interior height

400 mm, 450 mm, 460 mm, 500 mm
(15.75 in, 17.72 in, 18.11 in, 19.69 in)

Interior depth

400 mm, 450 mm, 500 mm, 670 mm
(15.75 in, 17.72 in, 19.69 in, 26.38 in)

External length

1,440 mm, 1,520 mm, 1,620 mm
(56.7 in, 59.8 in, 63.8 in)

External height

1,910 mm, 1,980 mm, 1,990 mm, 2,040 mm
(75.2 in, 77.95 in, 78.35 in, 80.31 in)

External depth

1,825 mm, 2,050 mm, 2,100 mm, 2,140 mm
(71.85 in, 80.71 in, 82.68 in, 84.25 in)

Description

The hot and cold impact test machine is to test whether the product has a bad impact due to the rapid changes of high and low temperature without moving the items to be tested. It is a necessary test equipment for metal, plastic, rubber, electrical and electronics, auto parts and other material industry. Meet The Standards： GJB 150.4-1986 low temperature test; GJB 150.3-1986 high temperature test; GJB 150.5-1986 temperature impact test; GB / T 5170.2-1996 temperature test equipment; GB / T 2423.1-2001(IEC60068-2-1:1990) test A: Low temperature test method; GB / T 2423.2-2001(IEC60068-2-2:1974) test B: High temperature test method; GB / T 2423.22-2002 (IEC60068-2-14:1984) test N: Temperature change test method test Na.
