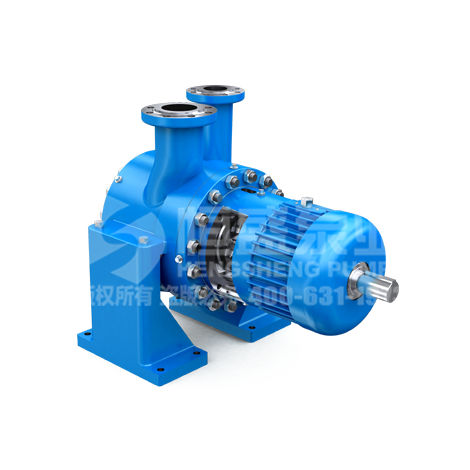

Oil pump AY
electricself-primingcentrifugal

oil pump
oil pump
Add to favorites
Compare this product


Characteristics

Media
oil
Operation
electric
Priming
self-priming
Technology
centrifugal
Domain
industrial, chemical
Applications
transport, lift
Other characteristics
suction, single-stage, two-stage, double
Flow

Min.: 2.5 m³/h (88.2867 ft³/h)

Max.: 600 m³/h (21,188.8 ft³/h)

Description

AY single two-stage centrifugal oil pump Model specification: 50 ay Ⅱ 60 x 2 b, 250 ays Ⅲ 150 c 50,250 -- suction inlet diameter (mm) A-- subrenovation Y-- centrifugal oil pump S-- the impeller is double suction Ⅱ, Ⅲ - over-current parts parts material code: Ⅰ class for HT250, Ⅱ class of ZG230-450, Ⅲ ZGCr13Ni class. 60,150 -- single-stage head (m) 2-- series B, C-- number of impeller cutting, in order of A, B Said. Performance range: traffic : 2.5 ~ 600m3/h lift : 30 ~ 330m The temperature: 45 ~ 420 ℃ AY type oil pump can be used in petroleum refining, petrochemical and chemical industries and other places to transport petroleum, LPG and other media without solid particles. Product overview: AY series single two stage centrifugal pumps are modified and redesigned on the basis of the old Y series. It is a new product developed to meet the needs of modernization and adapt to the new generation of equipment centering on energy conservation as soon as possible. It has the following characteristics: 1. The bearing body part USES the original 35,50,60 bearing body with 45, 555 and 70 bearing body respectively, which improves the reliability. 2. The hydraulic model of energy saving pump is adopted in the hydraulic over-flow part, with an average efficiency of 5-8% higher than that of the old y-type oil pump.
