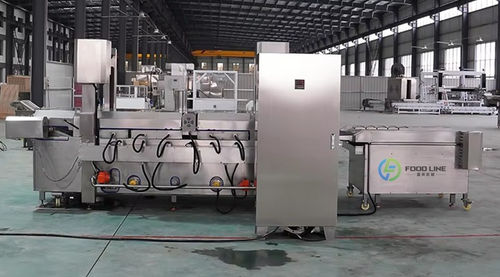

Continuous industrial fryer FL series

deep-fatmeatchicken fillet

Product overview
Foodline Continuous Fryer Machine (FL series) is an industrial conveyor-type fryer engineered for high-volume frying of snacks and food products. It provides controlled, uniform frying with configurable heating (gas, electric, diesel) and an integrated oil filtration and circulation system to extend oil life and reduce waste.

Technical information (models)
FL-2500 — 2500×800×1400 mm — 0–300°C — mesh belt 800 mm — 200–300 kg/h
FL-3000 — 3000×1200×2200 mm — 0–300°C — mesh belt 800 mm — 400–500 kg/h
FL-4000 — 4000×1200×2200 mm — 0–300°C — mesh belt 800 mm — 500–600 kg/h
FL-5000 — 5000×1200×2200 mm — 0–300°C — mesh belt 800 mm — 700–800 kg/h
FL-6000 — 6000×1200×2200 mm — 0–300°C — mesh belt 800 mm — 900–1000 kg/h
FL-7000 — 7000×1200×2200 mm — 0–300°C — mesh belt 800 mm — 1000–1100 kg/h
FL-8000 — 8000×1200×2200 mm — 0–300°C — mesh belt 800 mm — 1100–1200 kg/h

Features

• High production capacity — continuous operation for large-scale food manufacturing
• Oil filtration and circulation system — removes crumbs and prolongs oil service life
• Consistent frying quality — automated temperature control and uniform belt speed
• Multiple heating options — gas, electric or diesel to match plant utilities
• Stainless steel construction — hygienic surfaces designed for cleaning and food compliance
• Customizable layout — modular lengths and configurations to fit production lines

Applications

• Instant noodles and pasta snacks
• Potato chips and french fries
• Coated nuts and peanuts
• Snack foods (onion rings, spring rolls, samosas)
• Fried chicken, fish and processed meat products

Operation process

• Loading — products are placed onto the mesh belt for continuous entry into the oil tank
• Frying — adjustable time and temperature settings ensure target moisture and color
• Oil circulation — built-in filtration removes debris and maintains oil quality
• Cooling & discharge — products exit for draining, cooling, seasoning or packaging

Technical specifications

• Series: FL series (models FL-2500 to FL-8000)
• Working temperature range: 0–300°C
• Standard mesh belt width: 800 mm
• Material: stainless steel (food-grade)
• Heating options: gas, electric or diesel
• Integrated oil filtration and circulation system
