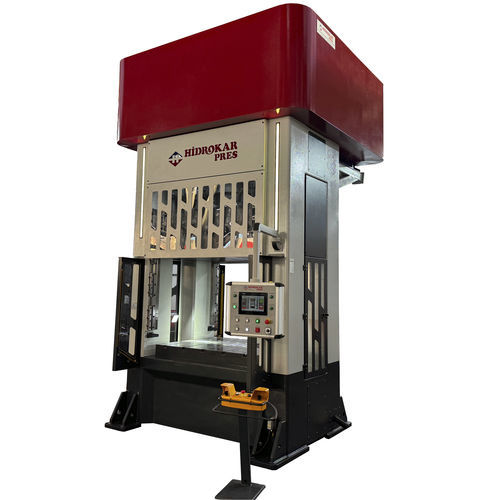

Hydraulic press line H Frame Deep Drawing Pressdrawingfor moldingfor sheet metal
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- for molding, drawing
- Applications
- for the automotive industry, for aluminum, for steel, for industrial applications, for sheet metal
- Structure
- frame, downstroke
- Control
- fully-automatic, PLC-controlled
- Other characteristics
- custom-made, vertical, high-pressure
- Force
Max.: 5,000 tf
Min.: 200 tf
- Opening
Max.: 2,000 mm
(79 in)Min.: 400 mm
(16 in)- Stroke
Max.: 2,000 mm
(78.74 in)Min.: 200 mm
(7.874 in)- Table width
Max.: 6,000 mm
(236 in)Min.: 500 mm
(20 in)- Table length
Max.: 10,000 mm
(394 in)Min.: 1,000 mm
(39 in)- Max. pressure
Min.: 250 bar
(3,626 psi)- Working speed
Max.: 15 mm/s
Min.: 10 mm/s
- Return speed
Max.: 300 mm/s
Min.: 50 mm/s
- Approaching speed
Max.: 250 mm/s
Min.: 50 mm/s
- Weight
Max.: 40,000 kg
(88,185 lb)Min.: 10,000 kg
(22,046 lb)- Overall length
Max.: 9,000 cm
(3,543 in)Min.: 1,300 cm
(512 in)- Overall width
Max.: 9,000 cm
(3,543 in)Min.: 1,500 cm
(591 in)- Overall height
Max.: 10,000 mm
(394 in)Min.: 3,000 mm
(118 in)
Description
HSH model, which is ranges from 100 tons to 1000 tons pressure force, is one of the most preferred models in deep drawing presses, is preferred in deep drawing processes in large table sizes where precise table parallelism and high pressures are required. Prioritizing customer and operation-oriented production offers customizable production opportunities.
*Robust steel construction
*Hydraulic unit requiring minimum maintenance
*T -slot table
*PLC control system
*HMI touch screen
*Linear stroke position limit sensor
*Proportional speed system
*Proportional pressure system
*Hydraulic safety system
*Electrical safety system
*Light barrier
*Safety cage
*CE certification
*Robust steel construction
*Hydraulic unit requiring minimum maintenance
*T -slot table
*PLC control system
*HMI touch screen
*Linear stroke position limit sensor
*Proportional speed system
*Proportional pressure system
*Hydraulic safety system
*Electrical safety system
*Light barrier
*Safety cage
*CE certification
