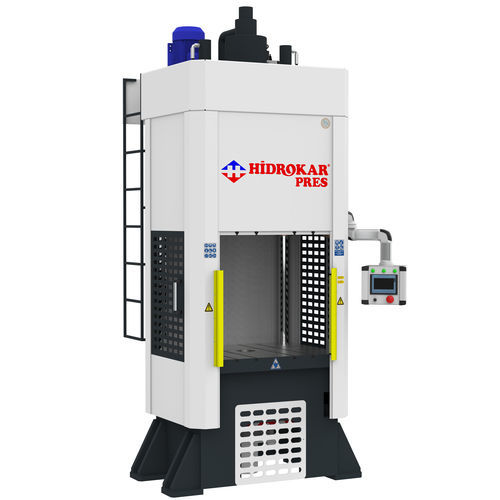

Hydraulic press line HSKdrawingstampingfor molding
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- for molding, stamping, drawing
- Applications
- for the automotive industry, for steel, for industrial applications
- Structure
- frame
- Control
- fully-automatic, PLC-controlled
- Other characteristics
- double-action, vertical
- Force
Min.: 100 tf
Max.: 600 tf
- Opening
Min.: 400 mm
(16 in)Max.: 900 mm
(35 in)- Stroke
Min.: 400 mm
(15.748 in)Max.: 1,000 mm
(39.37 in)- Table width
Min.: 500 mm
(20 in)Max.: 1,000 mm
(39 in)- Table length
Min.: 500 mm
(20 in)Max.: 2,000 mm
(79 in)- Max. pressure
Min.: 250 bar
(3,626 psi)- Working speed
Min.: 10 mm/s
Max.: 15 mm/s
- Return speed
Min.: 50 mm/s
Max.: 250 mm/s
- Approaching speed
Min.: 50 mm/s
Max.: 300 mm/s
- Overall length
Min.: 1,500 mm
(59 in)Max.: 5,000 mm
(197 in)- Overall width
Min.: 1,500 mm
(59 in)Max.: 5,000 mm
(197 in)- Overall height
Min.: 4,000 mm
(157 in)Max.: 8,000 mm
(315 in)
Description
It is preferred in deep dawing processes which requires high precision table parallelism thanks to it’s four fixed columns around table. Prioritizing customer and operation-oriented production offers customizable production opportunities.
STANDARD FEATURES
Robust Steel Construction
Hydraulic unit requiring minimum maintenance
Emergency stop button
Hydraulic safety system
Electrical safety system
CE certification
User manual
Button control
T-slot table
Adjustable pressure control
Double speed working system
OPTIONAL FEATURES
PLC control system
HMI touch screen
Proportional valve system
Light barrier
Safety cage
Tool box
Stroke indicator
Switch distance limit setting
Linear scale distance limit setting
Lighting led panel
