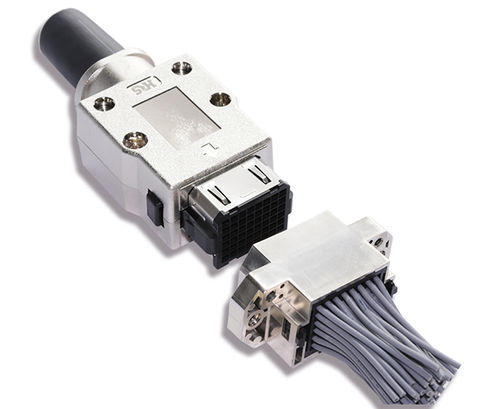

Electrical power supply connector PQ seriesrectangularlockingfor battery
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- rectangular
- Connection type
- locking
- Product applications
- for battery
- Primary current
Max.: 125 A
Min.: 3 A
- Voltage
300 V, 600 V
Description
Type: High power supply for FA
Current rating (Amps): 7
Rated voltage: AC/DC 600
Termination AWG: 15-22
Contact style: crimp
Variation: Panel mount, In-Line
Number of contacts: 20
Locking mechanism: Side Lock
Shielded (EMI prevention): Yes
Temperature range: -45°C to +105°C
Durability (mating / unmating cycle): 500
Note: Metal die cast
