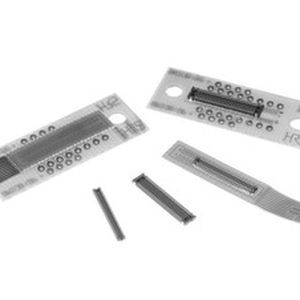

Data connector BM10 SeriesPCBSMTboard-to-board
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- PCB, SMT, board-to-board
- Shape
- parallel
- Product applications
- solder
- Other characteristics
- built-in, large
- Primary current
0.3 A
- Voltage
30 V
- Pitch
0.4 mm
(0.016 in)- Operating temperature
Min.: -35 °C
(-31 °F)Max.: 85 °C
(185 °F)
Description
0.4 mm Contact Pitch,Stacking Height 0.6mm 0.8mm Board-to-Board /Board-to-FPC Connectors
1. Higher density of the board-mounted components
2. Reliable electrical and mechanical connection
3. Large self-alignment distance
4. Built-in shock absorbing feature
5. Solder wicking prevention
6. Contamination protection
7. Conducive traces on the PCB can run under the connector
Catalogs
No catalogs are available for this product.
