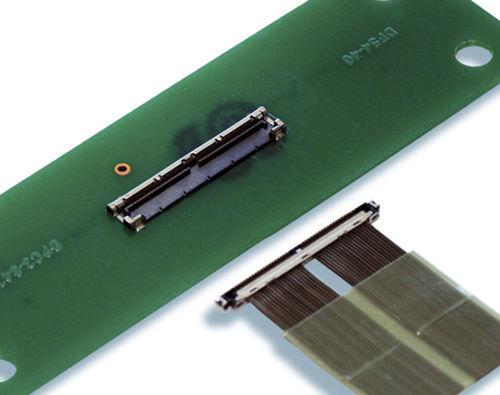

Coaxial connector DF54 serieswire-to-boardSMTPCB
Add to favorites
Compare this product
Characteristics
- Format
- coaxial, wire-to-board, SMT, PCB
- Shape
- parallel
- Primary current
0.1 A, 0.15 A, 0.2 A
- Pitch
0.35 mm
(0.014 in)
Description
pitch (mm): 0.35
Termination AWG: 42-46
PCB mounting style: SMT
Mated height (mm): 0.94
Number of contacts: 40 (others planned)
Rated voltage: AC 30V
Current rating (Amps): AWG 42: 0.2
AWG 44: 0.15
AWG 46: 0.1
Notes: Low profile
