- Hirose Electric Europe B.V.

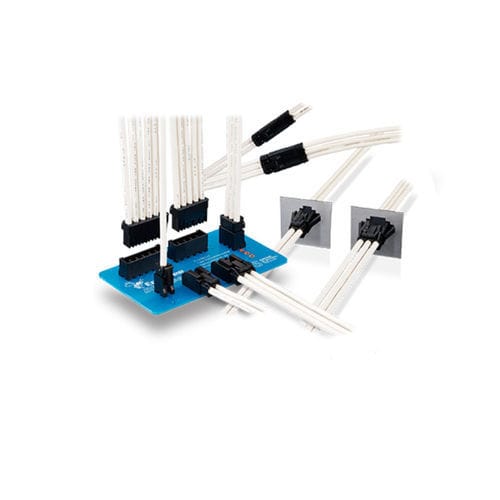

Data connector DF63 SeriesPCBwire-to-boardparallel
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- PCB, wire-to-board
- Shape
- parallel
- Connection type
- crimp, through-hole, locking
- Electrical characteristics
- power, short-circuit
- Material
- tin
- Product applications
- solder
- Domain
- industrial
- Other characteristics
- in-line
- Voltage
630 V
- Pitch
3.96 mm, 7.92 mm
(0.156 in, 0.312 in)- Operating temperature
Max.: 105 °C
(221 °F)Min.: -55 °C
(-67 °F)
Description
pitch Wire-to-Board Connectors for Internal Power Supply
(UL, C-UL and TÜV Listed)
1. Rated for up to 15A (when using 16 AWG wire)
＊ Supports pitch
2. Secure mating and clear tactile click
3. Prevents incomplete insertion of the crimp contact
4. Prevents incorrect mating
＊ Keying options available to prevent incorrect connections.
5. Reverse mounting prevention to PCB
6. Short-circuit prevention
7. Molded lance design
8. Suitable for potting
Capable of being potted, up to 5mm.
9. Solder crack prevention
