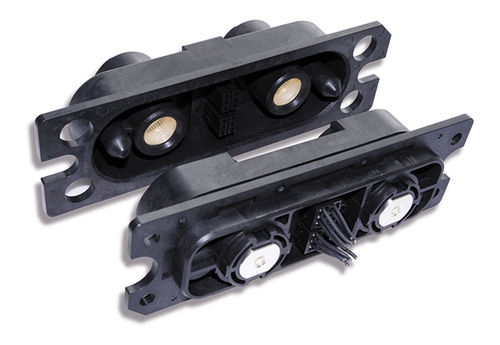

Data connector PS2-300A seriesrectangularlockingfor battery
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- rectangular
- Connection type
- locking
- Product applications
- for battery
- Primary current
5 A, 300 A
- Voltage
300 V, 1,000 V
Description
Type: Plug-in connector for battery storage
Current rating (Amps): Power 300, Signal 5
Rated voltage: Pwr AC1000V/Sig AC300V
Termination AWG: Signal AWG 16-18
Contact style: Power screw attachment
Variation: Panel mount
Number of contacts: 2x Power
6 + 6 signals
Locking mechanism: Sequential mating structure
Shielded (EMI prevention): No
Temperature range: -40°C to +105°C
Durability (mating / unmating cycle): 50
Note: Sequential signal contacts
Finger protection
Catalogs
No catalogs are available for this product.
See all of Hirose Electric Europe B.V.‘s catalogs
