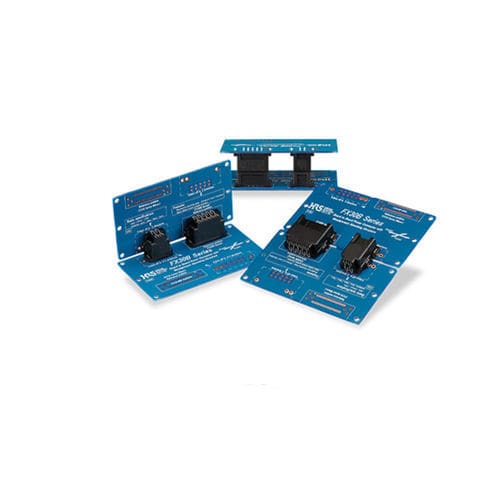

Electrical power supply connector FX30B SeriesPCBwire-to-boardparallel
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- PCB, wire-to-board
- Shape
- parallel
- Connection type
- locking
- Electrical characteristics
- power, current
- Product applications
- for battery, guide, POS
- Domain
- POS
- Other characteristics
- large
- Primary current
Max.: 25 A
Min.: 13 A
- Voltage
250 V, 600 V
- Pitch
3.81 mm, 7.62 mm
(0.15 in, 0.3 in)- Operating temperature
Max.: 105 °C
(221 °F)Min.: -55 °C
(-67 °F)
Description
13 to 25A Compatible, Position Misalignment Absorption Type
Power Supply Connector for PCB Connections
1. Contact Pitch: 3.81mm, 7.62mm
2. Current Capacity: 13-25A/pin
3. Connection Type: Parallel, Coplanar, Right Angle
4. No. of Pos.: 2 / 3 / 4 / 5pos.
5. Position Misalignment Absorption Range:±0.3 mm
6. Effective Mating Length: 2mm
7. Multi-point Contact Design
8. Low Insertion / Extraction Force
9. Robustness
10. Large Guide For Superior Mating Ability
11. Protected mating face design
12. UL, C-UL and TÜV certified.
