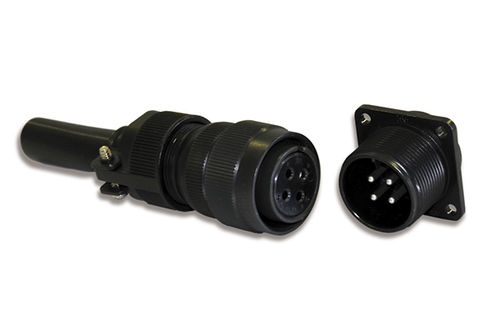

Audio/video connector H/MS seriesjackcircular
Add to favorites
Compare this product
Characteristics
- Type
- audio/video
- Format
- jack
- Shape
- circular
- Primary current
Min.: 2 A
Max.: 46 A
- Voltage
200 V, 250 V, 500 V, 700 V
Description
Shell size (mm): 10, 18, 20, 22, 24
Plug: Solder
Receptacle: Solder
Jack: None
Contact plating: Silver
Locking style: Screw
Accessory: -
Number of contacts: 2, 3, 4, 6, 7 ,8, 17, 19
Shell construction: Metal
Current rating (Amps): 13, 23, 46
Applicable standard: -
Notes: Waterproof
