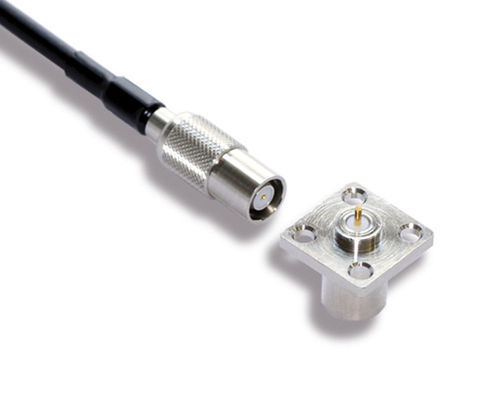

Data connector POD1 Series

DINcoaxialSMA

Micro push-pull complete lock coaxial connector 1. Push-pull complete locking method with excellent operability Our original push-pull complete locking method is adopted as the connector fitting part, and the outer cylinder part of the connector Just holding and pushing ensures locking and in locked condition there is no worry of missing connectors when unnecessary force is applied to the cable. Also, with regard to connector removal, it is also possible to unlock easily simply by grasping the connector outer cylinder portion and pulling it. 2. High alignment It is highly aligned, such as adopting the top touch method which was adopted only for coaxial connector high-grade model (SMA etc.) in the mating type. High frequency performance achieves V.S.W.R. 1.3 or less at D C ~ 3 G H z. By adopting the top touch method, it is very excellent also in noise resistance. 3. Miniaturization by 50% compared to BNC connector Compared to the BNC series and TNC series which are most popularly used as a fully locked connector, the size reduction is realized by 50% in diameter dimension.
