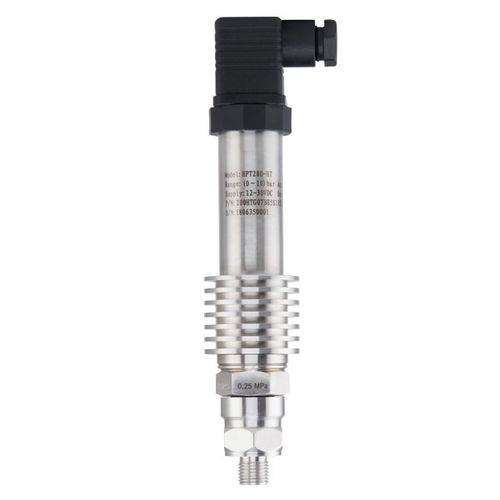

Relative pressure sensor HPT200-HT
silicon4-20 mA0-10 V

Relative pressure sensor - HPT200-HT - Holykell - silicon / 4-20 mA / 0-10 V
Relative pressure sensor - HPT200-HT - Holykell - silicon / 4-20 mA / 0-10 V
Relative pressure sensor - HPT200-HT - Holykell - silicon / 4-20 mA / 0-10 V - image - 2
Relative pressure sensor - HPT200-HT - Holykell - silicon / 4-20 mA / 0-10 V - image - 3
Relative pressure sensor - HPT200-HT - Holykell - silicon / 4-20 mA / 0-10 V - image - 4
Relative pressure sensor - HPT200-HT - Holykell - silicon / 4-20 mA / 0-10 V - image - 5
Relative pressure sensor - HPT200-HT - Holykell - silicon / 4-20 mA / 0-10 V - image - 6
Relative pressure sensor - HPT200-HT - Holykell - silicon / 4-20 mA / 0-10 V - image - 7
Add to favorites
Compare this product
Go to the Holykell website for more information

Characteristics

Pressure type
relative
Technology
silicon
Output
4-20 mA, 0-10 V, ratiometric
Electrical connection
M12 connector
Supply voltage
12VDC, 5VDC
Mounting
threaded
Process connection
G 1/4, G 1/2, NPT 1/4, NPT 1/2
Fluid
for oil, for water, for steam
Material
stainless steel
Protection level
for extreme conditions, IP65
Applications
for the food industry, for OEM, for medical applications, for the petrochemical industry, for the oil and gas industry, for pharmaceutical applications, for boiler
Other characteristics
precision, high-temperature, custom-made, fully-welded
Pressure range

Max.: 2,000 bar
(29,007.55 psi)

Min.: 0 bar
(0 psi)

Precision

0.5 %, 1 %

Long-term stability

0.3 %

Process temperature

Max.: 200 °C
(392 °F)

Min.: -10 °C
(14 °F)

Description

High temperature pressure sensor HPT200HT uses high quality diffused silicon pressure sensor, designed for extreme conditions and high media temperature. With a wide temperature range and precise pressure measurement, it ensures reliability and safety in demanding industrial applications. Application : ● Biotechnology Advantages 2 times range standard overload 4 times range burst pressure Surge (lightning) protection
