Absolute pressure sensor HPT601
piezoresistive4-20 mARS-485

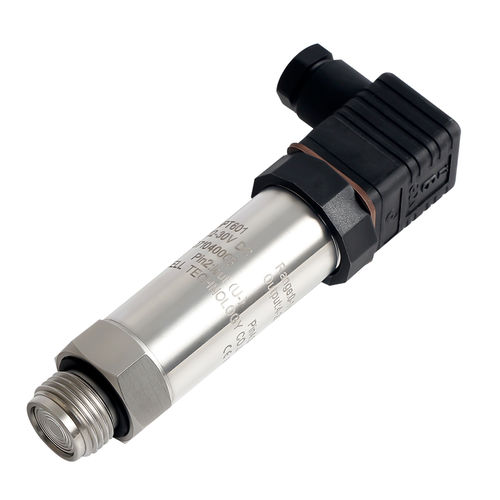

Absolute pressure sensor - HPT601 - Holykell - piezoresistive / 4-20 mA / RS-485

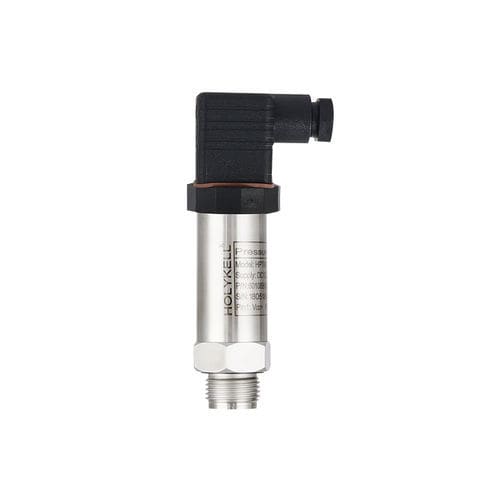

Absolute pressure sensor - HPT601 - Holykell - piezoresistive / 4-20 mA / RS-485
Absolute pressure sensor - HPT601 - Holykell - piezoresistive / 4-20 mA / RS-485 - image - 2
Absolute pressure sensor - HPT601 - Holykell - piezoresistive / 4-20 mA / RS-485 - image - 3
Absolute pressure sensor - HPT601 - Holykell - piezoresistive / 4-20 mA / RS-485 - image - 4
Absolute pressure sensor - HPT601 - Holykell - piezoresistive / 4-20 mA / RS-485 - image - 5
Absolute pressure sensor - HPT601 - Holykell - piezoresistive / 4-20 mA / RS-485 - image - 6
Add to favorites
Compare this product
Go to the Holykell website for more information

Characteristics

Pressure type
absolute
Technology
piezoresistive
Output
4-20 mA, RS-485
Supply voltage
24VDC, 12VDC, 15VDC, 5VDC, 32VDC, 8VDC, 36VDC, 9VDC, 6VDC
Mounting
threaded, flush diaphragm
Process connection
G 1/2, M20 x 1,5
Fluid
for liquids
Material
stainless steel
Protection level
corrosion-resistant, IP65
Applications
process, for the food industry, for medical applications
Other characteristics
CE, RoHS, custom-made, sanitary
Pressure range

Max.: 600 bar
(8,702.26 psi)

Min.: 0 bar
(0 psi)

Precision

0.25 %, 0.5 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

Flat diaphragm pressure sensor with sanitary flush diaphragm. All process connections of the flush pressure transmitter are made of stainless steel, fully welded and isolate the process medium from the pressure measuring instrument via a positive seal. Application : ● Filling and packing machinery ● Flat diaphragm pressure sensor Advantages 01 A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured 02 For Sanitary or CIP (Clean-in-Place) Applications 03 316L stainless steel diaphragm, welded 316SS body construction shock and erosion 04 Custom pressure ranges from 0-1m thru 0-500m 05 Flush process connection eliminates plugging
