Relative pressure transducer HPT200-H/C5/C8
absolutevacuumpiezoresistive

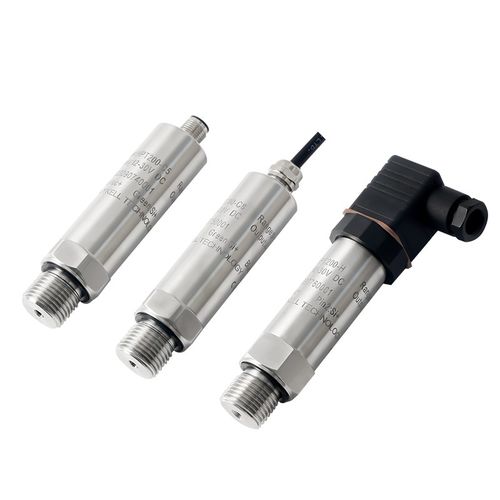

Relative pressure transducer - HPT200-H/C5/C8 - Holykell - absolute / vacuum / piezoresistive
Relative pressure transducer - HPT200-H/C5/C8 - Holykell - absolute / vacuum / piezoresistive
Relative pressure transducer - HPT200-H/C5/C8 - Holykell - absolute / vacuum / piezoresistive - image - 2
Relative pressure transducer - HPT200-H/C5/C8 - Holykell - absolute / vacuum / piezoresistive - image - 3
Relative pressure transducer - HPT200-H/C5/C8 - Holykell - absolute / vacuum / piezoresistive - image - 4
Relative pressure transducer - HPT200-H/C5/C8 - Holykell - absolute / vacuum / piezoresistive - image - 5
Relative pressure transducer - HPT200-H/C5/C8 - Holykell - absolute / vacuum / piezoresistive - image - 6
Add to favorites
Compare this product
Go to the Holykell website for more information

Characteristics

Pressure type
relative, absolute, vacuum
Technology
piezoresistive, piezoelectric
Output
4-20 mA, 0-10 V, 0-5 V, 2-wire, Modbus, RS-485, HART
Electrical connection
M12 connector, terminal block
Supply voltage
24VDC, 15VDC, 12VDC, 9VDC, 8VDC
Mounting
threaded
Process connection
G 1/2, G 1/4, NPT 1/4, NPT 1/2
Fluid
for air, for natural gas, for water, for wastewater, for oil
Material
stainless steel
Protection level
EMC, rugged, corrosion-resistant, IP65, IP67
Applications
process, for OEM, for the food industry, for water treatment, for medical applications
Other characteristics
precision, CE, temperature-compensated, RoHS, silicone oil-filled, fast response time, fully-welded, oil-filled, two-wire, custom-made
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.25 %

Long-term stability

0.1 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Industrial pressure transmitter use high quality Measuring range imported U.S.A piezoresistive pressure sensor, Complete with a fully welded 316L stainless steel housing, high shock and vibration and EMI/RFI protection. The Hirschmann, directly cable and M12*4PIN interface with SDI and I2C output. Application : ● Gauge, Absolute, Negative, Sealing Pressure Measurement ● Hydro-power ● Intelligent building ● Production control ● Pressure measuring instruments Advantages Non-linearity up to 0.125 % of span High Shock and Vibration Full sealed high stability impact design Customized outputs, electrical connections and pressure ports
