Relative pressure sensor HPT300-C3
ceramicanalog5VDC

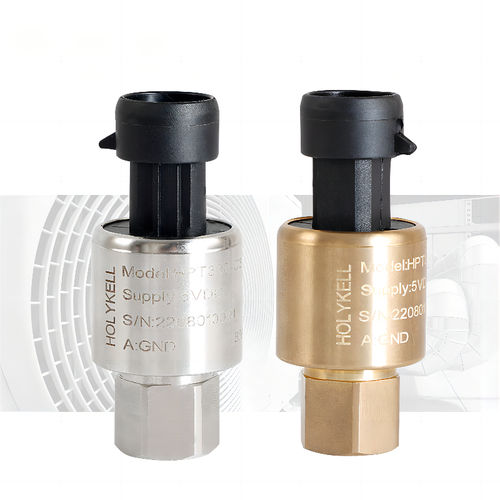

Relative pressure sensor - HPT300-C3 - Holykell - ceramic / analog / 5VDC

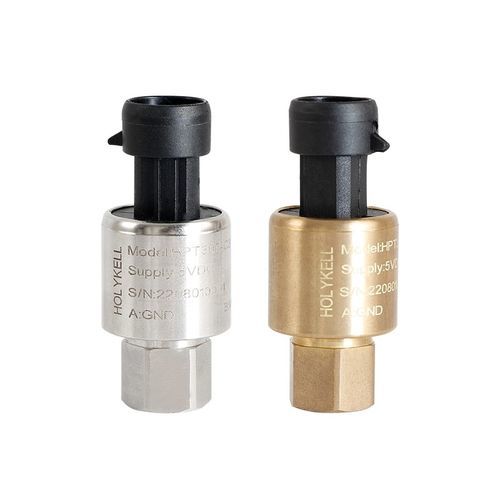

Relative pressure sensor - HPT300-C3 - Holykell - ceramic / analog / 5VDC

Relative pressure sensor - HPT300-C3 - Holykell - ceramic / analog / 5VDC - image - 2

Add to favorites

Compare this product

Go to the Holykell website for more information

Characteristics

Pressure type

relative

Technology

ceramic

Output

analog

Supply voltage

5VDC, 3VDC, 4.5VDC

Mounting

threaded

Fluid

coolant, for air, for compressed air

Material

stainless steel, brass

Protection level

EMC, corrosion-resistant, IP66

Applications

for HVAC systems, for compressors

Other characteristics

compact, OEM, CE, custom-made

Pressure range

Min.: -1 bar
(-14.5 psi)

Max.: 65 bar
(942.75 psi)

Precision

1 %

Long-term stability

0.2 %

Process temperature

Min.: -35 °C
(-31 °F)

Max.: 105 °C
(221 °F)

Description

01 Ceramic capacitor core, anti-corrosion and signal interference resistance 02 Enhanced accuracy over broad operating temperature range, -35°C to 105°C 03 IP66 conformal coating applied, moisture-proof and anti-condensation supported 04 Small temperature drift, 3 times burst pressure max, high reliability 05 SS304 and brass housing optional, most media compatible Pressure Type Absolute(A)/sealed gauge(S) pressure optional Electronic connection Packard Metri-Pack 3 Pin connector Pressure connect port 7/16-20 UNF-2B Output 0.5~4.5V ratiometric Temp. Compensation -20℃~80℃ Medium Compatible SS304/brass and ceramic compatible
