Absolute pressure transmitter HPT200-H/C5/C8
vacuumpiezoresistive4-20 mA

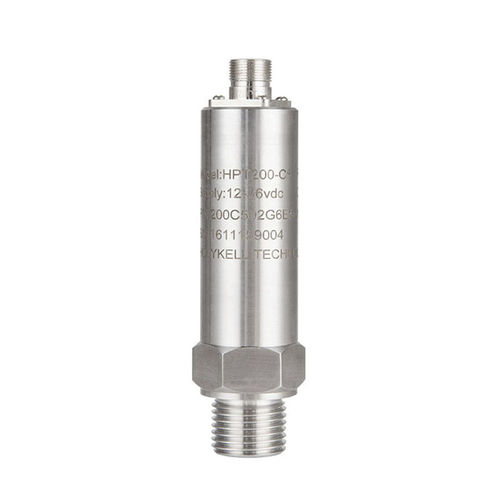

Absolute pressure transmitter - HPT200-H/C5/C8 - Holykell - vacuum / piezoresistive / 4-20 mA
Absolute pressure transmitter - HPT200-H/C5/C8 - Holykell - vacuum / piezoresistive / 4-20 mA
Absolute pressure transmitter - HPT200-H/C5/C8 - Holykell - vacuum / piezoresistive / 4-20 mA - image - 2
Absolute pressure transmitter - HPT200-H/C5/C8 - Holykell - vacuum / piezoresistive / 4-20 mA - image - 3
Absolute pressure transmitter - HPT200-H/C5/C8 - Holykell - vacuum / piezoresistive / 4-20 mA - image - 4
Absolute pressure transmitter - HPT200-H/C5/C8 - Holykell - vacuum / piezoresistive / 4-20 mA - image - 5
Absolute pressure transmitter - HPT200-H/C5/C8 - Holykell - vacuum / piezoresistive / 4-20 mA - image - 6
Absolute pressure transmitter - HPT200-H/C5/C8 - Holykell - vacuum / piezoresistive / 4-20 mA - image - 7
Add to favorites
Compare this product
Go to the Holykell website for more information

Characteristics

Pressure type
absolute, vacuum
Technology
piezoresistive
Output
4-20 mA, 0-10 V, 0-5 V, ratiometric 0,5-4,5 V, HART, RS-485, Modbus, Modbus RTU, 2-wire, 4-wire
Electrical connection
M12 connector, terminal block, junction box
Supply voltage
24VDC, 12VDC, 15VDC, 36VDC, 5VDC, 8VDC, 9VDC, 6VDC
Mounting
threaded
Process connection
G 1/4, G 1/2, NPT 1/4, NPT 1/2
Fluid
for gas, for liquids
Material
stainless steel
Protection level
EMC, rugged, corrosion-resistant, IP65, IP67, IP66
Applications
process, for the food industry, for the petrochemical industry, for OEM, for water treatment, for building automation, for medical applications, for agricultural applications
Other characteristics
precision, CE, two-wire, custom-made, RoHS, fast response time, fully-welded, oil-filled, silicone oil-filled
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.25 %

Long-term stability

0.1 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Industrial pressure transmitter use high quality Measuring range imported U.S.A piezoresistive pressure sensor, Complete with a fully welded 316L stainless steel housing, high shock and vibration and EMI/RFI protection. The Hirschmann, directly cable and M12*4PIN interface with SDI and I2C output. Application : ● Gauge, Absolute, Negative, Sealing Pressure Measurement ● Hydro-power ● Intelligent building ● Production control ● Pressure measuring instruments Advantages Non-linearity up to 0.125 % of span High Shock and Vibration Full sealed high stability impact design Customized outputs, electrical connections and pressure ports
