Relative pressure sensor HPT300-C2
absoluteceramic4-20 mA

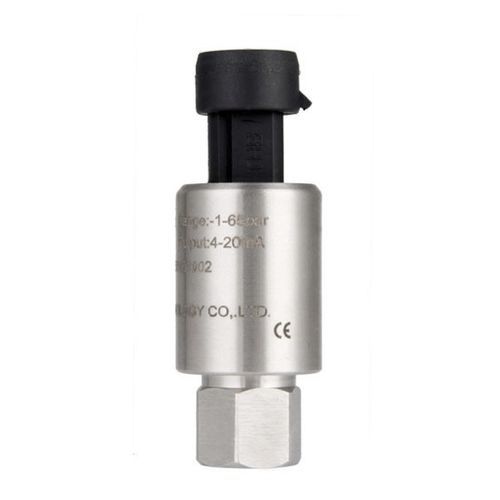

Relative pressure sensor - HPT300-C2 - Holykell - absolute / ceramic / 4-20 mA
Relative pressure sensor - HPT300-C2 - Holykell - absolute / ceramic / 4-20 mA
Relative pressure sensor - HPT300-C2 - Holykell - absolute / ceramic / 4-20 mA - image - 2
Relative pressure sensor - HPT300-C2 - Holykell - absolute / ceramic / 4-20 mA - image - 3
Relative pressure sensor - HPT300-C2 - Holykell - absolute / ceramic / 4-20 mA - image - 4
Relative pressure sensor - HPT300-C2 - Holykell - absolute / ceramic / 4-20 mA - image - 5
Relative pressure sensor - HPT300-C2 - Holykell - absolute / ceramic / 4-20 mA - image - 6
Relative pressure sensor - HPT300-C2 - Holykell - absolute / ceramic / 4-20 mA - image - 7
Add to favorites
Compare this product
Go to the Holykell website for more information

Characteristics

Pressure type
relative, absolute
Technology
ceramic
Output
4-20 mA, 0-10 V, 0-5 V
Supply voltage
24VDC, 12VDC, 15VDC, 5VDC, 8VDC, 9VDC, 6VDC
Mounting
threaded, O-ring
Process connection
NPT 1/4, NPT 1/8
Fluid
for liquids, for gas
Material
stainless steel
Protection level
IP67
Applications
for OEM, process, for the food industry, for HVAC systems, for the petrochemical industry, for hydraulic applications, for engines, for refrigeration circuits, for the chemical industry, for water treatment, for marine applications, for agricultural applications, for compressors
Other characteristics
precision, compact, CE, RoHS, temperature-compensated, custom-made, fast response time, economical, two-wire
Pressure range

Max.: 200 bar
(2,900.75 psi)

Min.: -1 bar
(-14.5 psi)

Precision

1 %

Long-term stability

0.05 %, 0.2 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

Refrigeration pressure sensor adopts the latest generation of ceramic pressure core, which can be used in a low temperature environment of -35-125°C. The shell adopts a "passivation" process, which is not affected by moisture and condensation. It is widely used in refrigeration and HVAC systems and is compatible with various types of refrigerant measurement. Application : ● Screw-type,reciprocating and turbo compressors ● Air-conditioner production line testing Advantages 01 SAE female Process Connection with built-in Schrader Deflator 02 -40℃ ~80℃ Wide working temp scope 03 Long time working at low temperate -35℃ 04 Superior Long term Stability 05 Excellent Repeat ability/Hysteresis
