Absolute pressure sensor HPT200-G
piezoresistive4-20 mAdigital

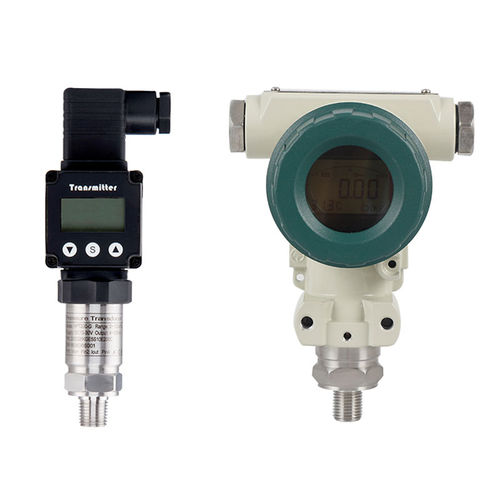

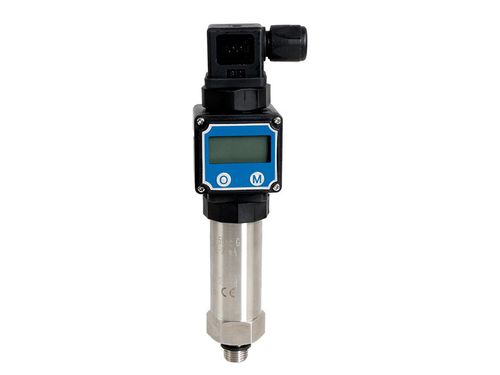

Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital
Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital
Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital - image - 2
Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital - image - 3
Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital - image - 4
Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital - image - 5
Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital - image - 6
Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital - image - 7
Absolute pressure sensor - HPT200-G - Holykell - piezoresistive / 4-20 mA / digital - image - 8
Add to favorites
Compare this product
Go to the Holykell website for more information

Characteristics

Pressure type
absolute
Technology
piezoresistive
Output
4-20 mA, digital, 2-wire
Supply voltage
24VDC, 12VDC, 15VDC, 8VDC, 9VDC
Mounting
threaded
Process connection
NPT 1/4, NPT 1/2
Material
stainless steel
Protection level
IP65
Applications
process, for the petrochemical industry, for water treatment
Other characteristics
fully-welded, with display
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.1 %, 0.25 %, 0.5 %

Long-term stability

0.1 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

HPT200G pressure transducer with display features a high quality piezoresistive pressure sensor, it has a big HD display for reading values locally, easy to use. Application : ● Biomedical ● Eco Saving Advantages With 4-1/2 bits LED display Surge (lightning) protection EMI/RFI Protection Zero point and span adjustable
