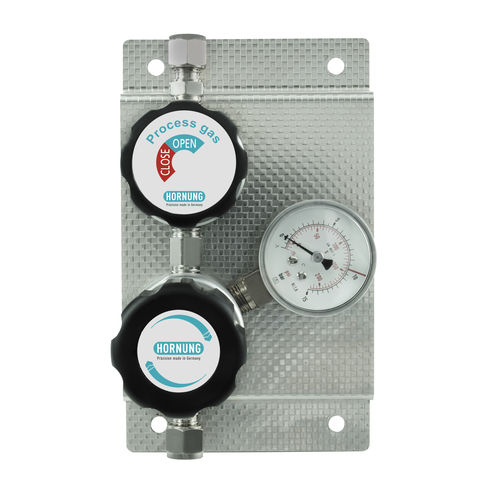

Gas pressure regulator HP 450
diaphragmsingle-stagestainless steel

Gas pressure regulator - HP 450 - Hornung GmbH - diaphragm / single-stage / stainless steel
Gas pressure regulator - HP 450 - Hornung GmbH - diaphragm / single-stage / stainless steel
Gas pressure regulator - HP 450 - Hornung GmbH - diaphragm / single-stage / stainless steel - image - 2
Gas pressure regulator - HP 450 - Hornung GmbH - diaphragm / single-stage / stainless steel - image - 3
Add to favorites
Compare this product

Characteristics

Product
for gas
Technology
diaphragm
Number of stages
single-stage
Material
chrome-plated brass, stainless steel
Applications
industrial, for medical applications, for analytical instruments, high-purity, for chromatography
Other characteristics
compact, with pressure gauge, modular, high-purity, vertical
Pressure

Min.: 0 bar
(0 psi)

Max.: 40 bar
(580.15 psi)

Orifice diameter

0.25 in

Temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

The point of use regulator HP 450 is an system wall version. The point of use regulator is ready mounted on a console and is connected to a permanently laid piping system. It serves as a second-stage and reduces the line pressure to an adjustable working pressure. 1 to 5 regulators with a modular dimension of 100 mm can be collectively mounted on one bracket. The HP 450 point of use regulator is fitted with a diaphragm shut-off valve, pressure regulator with pressure gauge as standard. Especially for gases with high requirements on purity to 6.0. secure and leak proof. Through our special cleaning system our pressure regulators are suitable for ECD –applications. The point of use regulator HP 450 is also suitable for acetylene with the use of a corresponding flash-back arrestor to EN730.
