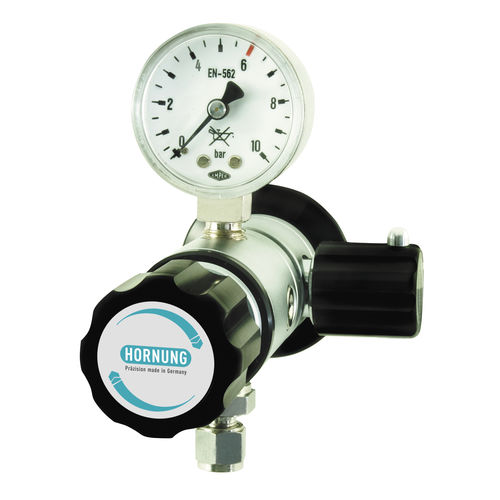

Gas pressure regulator HP 402diaphragmtwo-stageanalog
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- diaphragm
- Output signal
- analog
- Material
- chrome-plated brass, stainless steel
- Applications
- industrial, for medical applications, for analytical instruments, high-purity, for chromatography, laboratory
- Other characteristics
- compact, with pressure gauge, line, high-purity, with shut-off valve
- Pressure
Max.: 40 bar
(580.15 psi)Min.: 0 bar
(0 psi)- Orifice diameter
0.25 in
- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
The HP 402 is a point of use regulator for laboratory furnitures. The regulator is fitted with a small wall console in front of and a screw behind the wall.
The HP 402 is for reducing line pressure to working pressure as a second-stage.
As a standard configuration the point of use regulator will be supplied with shut-off valve and gauge for working pressure, the console and the screwing for fixing. Options are specific inletand outlet connections or a metering valve fitted to the outlet of HP 402.
Especially for gases with high requirements on purity to 6.0.
Our special cleaning system for the HP series also guarantees the use for ECD applications.
