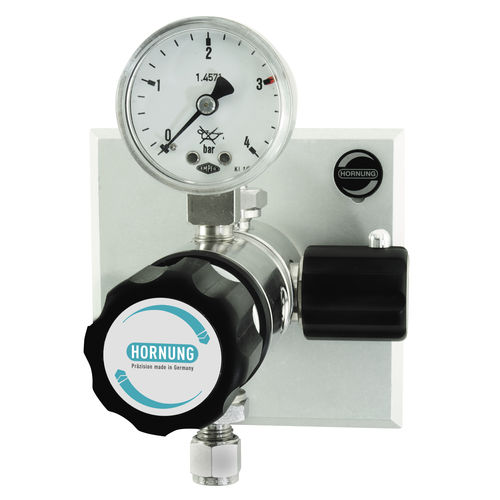

Gas pressure regulator HP 401
diaphragmsingle-stageanalog

Gas pressure regulator - HP 401 - Hornung GmbH - diaphragm / single-stage / analog
Gas pressure regulator - HP 401 - Hornung GmbH - diaphragm / single-stage / analog
Gas pressure regulator - HP 401 - Hornung GmbH - diaphragm / single-stage / analog - image - 2
Gas pressure regulator - HP 401 - Hornung GmbH - diaphragm / single-stage / analog - image - 3
Add to favorites
Compare this product

Characteristics

Product
for gas
Technology
diaphragm
Number of stages
single-stage
Output signal
analog
Material
chrome-plated brass, stainless steel
Applications
industrial, for medical applications, for analytical instruments, for chromatography
Other characteristics
compact, with pressure gauge, line, high-purity, with shut-off valve
Pressure

Min.: 0 bar
(0 psi)

Max.: 40 bar
(580.15 psi)

Orifice diameter

0.25 in

Temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

The HP 401 is a point of use regulator for wall mounting. The regulator is mounted on a wall console for reducing line pressure to working pressure as a second-stage. As a standard configuration the point of use regulator will be supplied with shut-off valve and gauge for working pressure. Options are specific inlet- and outlet connections or a metering valve fitted to the outlet of HP 401. Especially for gases with high requirements on purity to 6.0. Our special cleaning system for the HP series also guarantees the use for ECD applications

Catalogs

Other Hornung GmbH products

Point of use regulator for high purity gases
