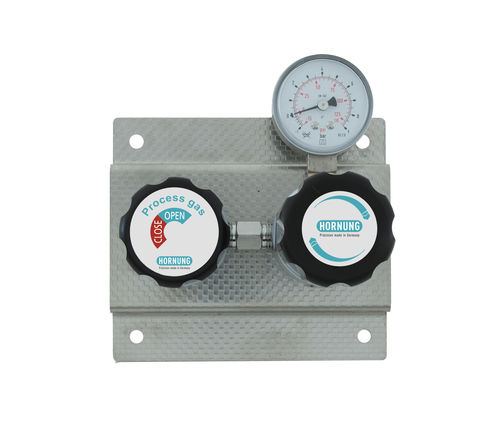

Gas pressure regulator HP 454

diaphragmsingle-stageanalog

The point of use regulator HP 454 is a system wall version. The point of use regulator is ready mounted on a console and is connected to a permanently laid piping system. It serves as a second-stage and reduces the line pressure to an adjustable working pressure. 1 to 5 regulators with a modular dimension of 140mm can be collectively mounted on one bracket. The HP 454 point of use regulator is fitted with a diaphragm shut-off valve, pressure regulator with pressure gauge as standard. Especially for gases with high requirements on purity to 6.0. secure and leak proof. Through our special cleaning system our pressure regulators are suitable for ECD –applications. The point of use regulator HP 450 is also suitable for acetylene with the use of a corresponding flash-back arrestor to EN730.
